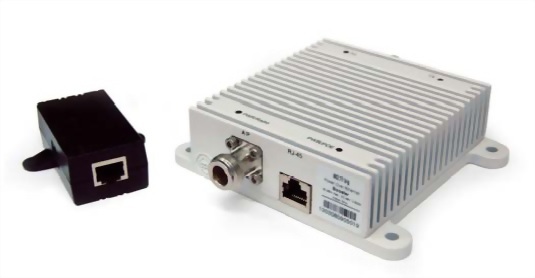

2Watt PoE Booster

Model : AAM-2420-ODU-POE

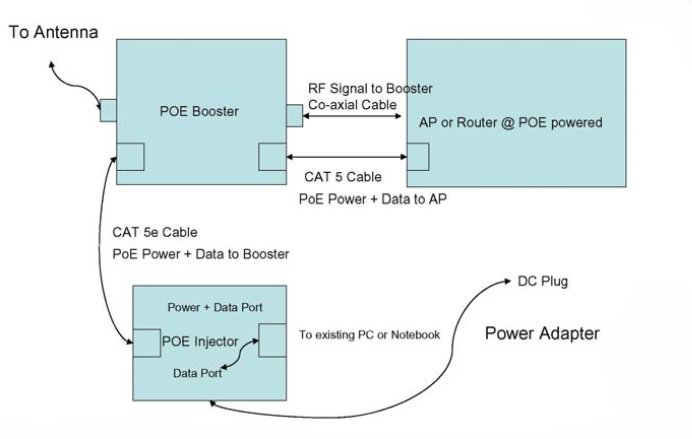

TheAAM-2420-ODU-POE is a unique approach to the RF Power Amplifier. This unit is designed to function as an amplifier as well as transferring data over the same CAT-5e line that carries the DC power supply. This flexibility allows the AAM-2420-ODU-POE to be mounted in a very tight space.  This module uses the Time Division Duplex (TDD) technology designed for high power 2.4GHz ISM band.  The applications in this band include WLAN, Bluetooth, Point to Point (P2P), and Point to Multi-Point (P2MP) systems.  The Booster Module enhances the coverage and stabilizes the transmitted data rate of Direct Sequence Spread Spectrum (DSSS) in both indoor and outdoor applications, such as 802.11b, 802.11b+, 802.11g and 802.11b+g. For Tx, we use a proprietary high-power, high-efficiency, linear amplifier MMIC which is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) to get low current consumption and better heat effect. In WLAN applications, it produces a continuous RF output power of 2000mW (+32dBm) underthe802.11b spectral mask..

Frequency Band

2.4GHz ~ 2.5GHz

Signal Type

OFDM&DSSS

TR Switch Time

< 1µsec

Rx. Max Input Power

-10 dBm

Rx Power Gain

23dB max

Tx Input Power

5~20dBm

Tx Linear Output Power

2W @ 11b

DC Supply Voltage

DC 48V

RF Connector Type

N Female

Operating Temperature

-10 ~ +40 °C

Storage Temperature

-40 ~ +90 °C

Features:

•High Switching Speed

•Power Gain Controller

•High Gain and Low Noise

•Powered through DC Power

•Injector

•Low Power Consumption

•Low Heat Generation

•Light Weight

Applications

•WLAN 802.11b, 802.11b+

•WLAN 802.11g

•Bluetooth

•Digital Spread Spectrum on the ISM Band

Absolute Maximum Ratings

•Supply Voltage   72 V

•Rx Input Power   -10 dBm

•Tx Input Power   +23 dBm

•Operating Temperature -10 ~ +50 °C

•Storage Temperature  -40 ~ +90 °C
