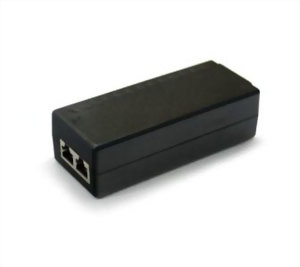

48V Switching PoE Adapter
Model :
APOE48V-1
Spectifications
Output Voltage | 48V |
Output Rating | 0.4A |
Input Voltage | AC 90~264V |
Input Frequency | 47~63Hz |
Input Current | 0.5A Maximum |
Inrush Current | 40A Maximum |
Line Regulation | 2% Maximum |
Load Regulation | ±5% |
Ripple & Noise | 1% Typical |
Efficiency | 83% Typical |
Temperature Coefficient | 0.05%°C |
Over-Voltage Protection | 96V Maximum |
Operating Temperature | 0~40°C |
Storage Temperature | -20~85°C |
Safety Description | CE |
Dimension:

PIN Definition:

Setup Diagram:

Features
- Cispr 22’B’, Vcci’B’, Fcc’B’ Compliance
- Light Weight: 145g
- Efficiency Over 75%
- Over-Voltage Protective Installation Short-circuit Protective Installation
- Protection Type: Auto-Recover
- Operating Temperature 0°C~40°C
