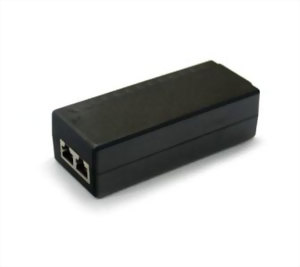

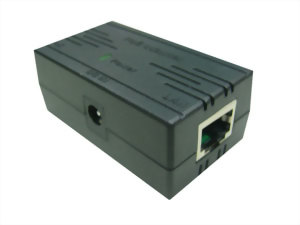

Base Unit for Power Over Ethernet

Model : APM-201

Input Specifications:
1. Power Interface: DC Jack (See Pin Assignment)
2. Data Interface: RJ-45 jack (See Pin Assignment)
3. Input Voltage: 48V ¡Ó 10 % * Applied from External Switching Adapter ( 90 ~ 264Vac)
4. Input Current : 400 mA Max.

Output Specification:
1. PD Detection & Classification: IEEE 802.3af compliant
2. Interface: RJ-45 jack (See Pin Assignment)
3. Output Voltage: 48V ¡Ó 10 %(42,53) 4.4. Cooling: Free air convection
4. Output Current: 0.35 A Max.
5. Output Power: 15.4W Max.
6. LED Display: ;PoE Not Active (Orange),PoE Active (Green)

General Specification¡G
1. Operating Temperature: 0°C ~+50C
2. Storage Temperature : -20°C ~ +70°C
3. Humidity: Up to 90 %
4. Cooling: Free air convection



Pin Assignment :


Pin

LAN IN

LAN Out

Pin

1

Tx (+)

Tx (+)

1

2

Tx (-)

Tx (-)

2

3

Rx (+)

Rx (+)

3

4

N.C.

+48V

4

5

N.C.

+48V

5

6

Rx (-)

Rx (-)

6

7

N.C.

GND

7

8

N.C.

GND

8

Mechanical Dimension



Units :m/m & Tolerance:0.xx ± 0.25



Features:
1. Single-Port Power Injector
2. IEEE 802.3af compliant
3. No Software Required
4. Easy to Install
5. Use Existing Ethernet Cable
