5.1~5.8GHz antenna splitter
Model :
ASP-504

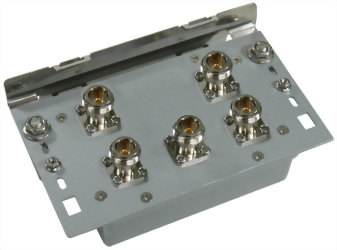

ASP-504 is a four-port antenna splitter that enables you to operate one radio with four antennas.
It is optimized for maximum performance in the 5.1-5.8 GHz band. The model ASP-504 incorporates state of the art "microstrip" technology using the “Wilkinson” circuit topology.
No power supply is required for operation of this splitter.
It is optimized for maximum performance in the 5.1-5.8 GHz band. The model ASP-504 incorporates state of the art "microstrip" technology using the “Wilkinson” circuit topology.
No power supply is required for operation of this splitter.
Spectifications
| Type | 4-way |
| Frequency | 5150-5850 MHz |
| Insertion Loss | < 0.7dB |
| Impedance | 50 Ohms |
| V.S.W.R. | < 1.5:1 Typical |
| Power Rating | 2 Watts |
| Temperature Range | -30°C to +70°C |
| Dimensions | 143.3 × 47.6 × 79.3 (mm) |
| Weight | 400g |
Features
- Waterproof enclosure
- Works equally well for both transmit and receive signals
- Standard N-female connectors
- Includes pole mounting hardware
- Works with both FHSS and DSSS radio signals
- Covers the entire 5.15-5.85 GHz band
- Only 0.7 dB insertion loss over the theoretical 6dB loss found in 4 port splitters
- VSWR < 1.5:1
- Supports up to 2 Watt transmitter power
- Extremely reliable stripline matching
- Passes DC through it to enable dual amplifiers (one for each antenna)
- Suitable for Omni or directional antennas or a combination thereof
- Provides isolation between the output ports
- Will not cause interference-producing intermodulation
