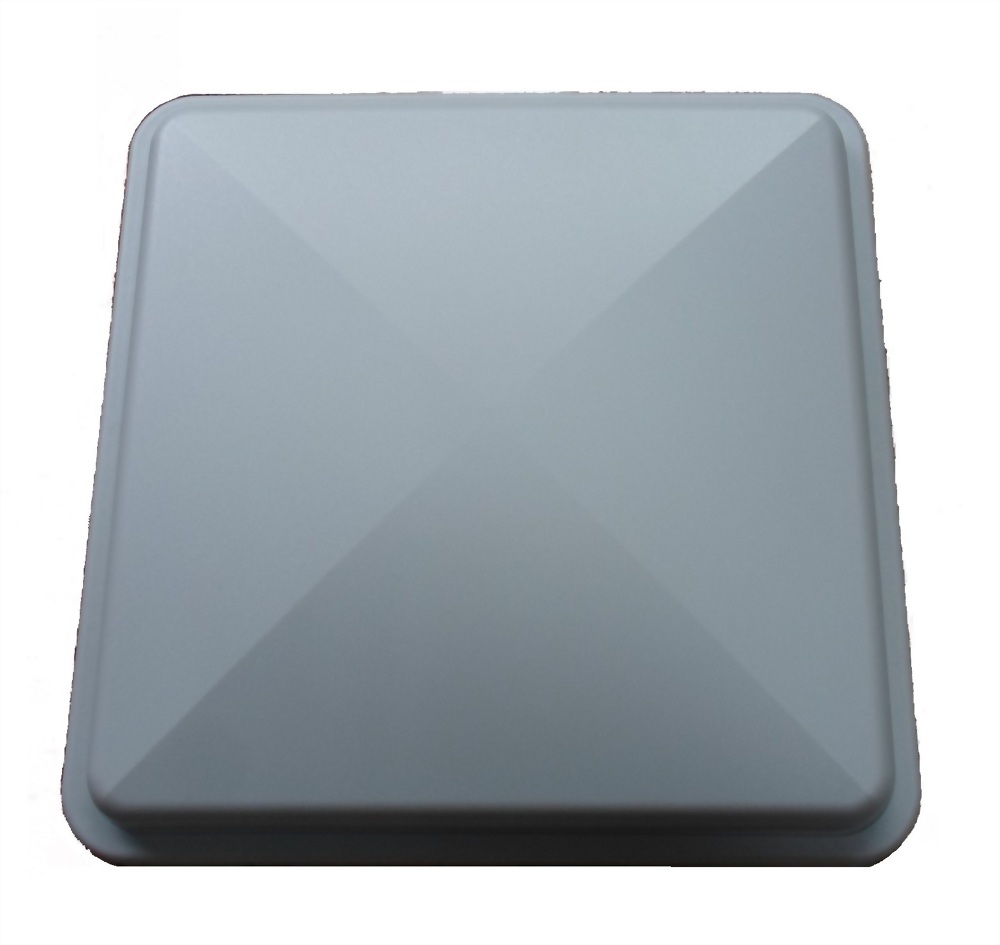

5.1~5.9GHz 18dBi MIMO Antenna
Electrical Specifications
|
Frequency Range |
5150MHz - 5850MHz |
|
V.S.W.R (MAX) |
2.0 :1 |
|
Antenna Type |
Panel |
|
Radiation |
Directional |
|
Gain |
18 dBi |
|
Polarization |
Vertical and Horizontal |
|
Maximum Power |
10 Watts |
|
Vertical Beam-width |
Port1=15Deg/Port2=16Deg |
|
Horizontal Beam-width |
Port1=16Deg/Port2=16Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Patch Array |
|
Internal Material |
PTEF(PCB) |
|
Connector |
N-Female*2 |
Mechanical Specifications
|
Length x Width (MAX) |
230 x 230 mm |
|
Diameter (MAX) |
35 mm |
|
Antenna Weight (G.W) |
370 g |
|
Accessories (G.W) |
250 g |
|
Application |
Indoor / Outdoor |
|
Radome Material |
Gary ABS+UV |
|
Base Material |
Aluminum |
|
Mount Style |
Pole Mount / Wall Mount |
|
Mounting |
Stainless Steel and Aluminum |
|
Wind Survival |
Greater then 150MPH |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-20 to +60 |
|
Operating Humidity |
10%~80% non-condensing |
|
Storage Humidity |
5%~80% non-condensing |
|
Safety,Emission and other |
RoHS |
•Superior performance
•The Weight is light
•Good appearance designs
•DC Short lightning protection
•Support is up and down or so to adjust
•Behind and support is an aluminum
•Outdoor antenna for public Hot spots
•Includes tilt and swivel mast mount brackets
•RoHS Compliant
•5150MHz - 5850MHz Frequency Band
•IEEE 802.11a WRAN
•Point to Point Bridge
•Multipoint Application
•Bluetooth
•Public Wireless Hotspot
•Wireless Video Systems
