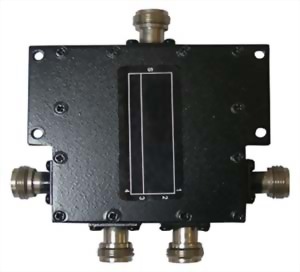

5~1000MHz CATV SPLITTERS

Model : W-1204

Specification:

Item
Frequency Range (MHz)
W-1204
Insertion Loss(IN-OUT)(dB)
5-40
≤3.5
40-550
≤3.7
550-750
≤3.9
750-860
≤4.2
860-1000
≤4.2
Isolation  Loss(OUT-OUT)(dB)
5-40
≥30
40-550
≥30
550-750
≥28
750-860
≥28
860-1000
≥28
Return Loss(IN/OUT)(dB)
5-40
≥22
40-550
≥20
550-750
≥20
750-860
≥18
860-1000
≥18

Features:

  • Low insertion loss, high return loss and isolation.
  • RF shielded Zinc die cast housing with Tin plated and solder shield bottom sheet metal plate.
  • Two pieces of screws attached.
  • Particularly design for easy and convenient installation .
  • All ports F-(f) connector, 75Ω .
  • Grounding terminal provided.
  • Screening factor:
    30-300MHz≥85dB
    300-470MHz≥80dB
    470-1000MHz≥75Db
