5~1000MHz CATV SPLITTERS

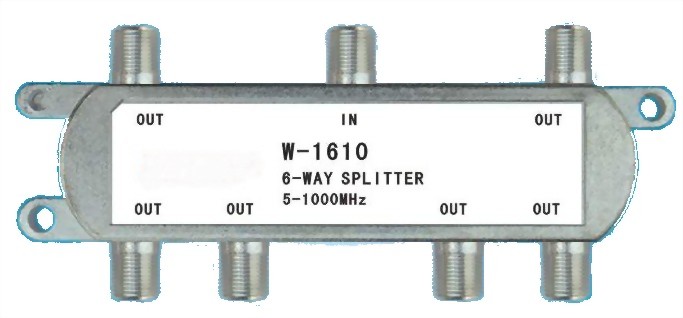

Model : W-1610

Item
Frequency Range (MHz)
W-1610
Insertion Loss(IN-OUT)
5-40
≤10.0
40-550
≤10.5
550-750
≤11.0
750-860
≤11.0
860-1000
≤11.8
Isolation Loss (OUT-OUT)
5-40
≥25
40-550
≥25
550-750
≥25
750-860
≥25
860-1000
≥23
Return Loss (IN/OUT)
5-40
≥18
40-550
≥18
550-750
≥18
750-860
≥17
860-1000
≥16
Wireless Accessory W-1610

Features:

  • Low insertion loss, high return loss and isolation.
  • RF shielded Zinc die cast housing with Tin plated and solder shield bottom sheet metal plate.
  • Two pieces of screws attached.
  • Particularly design for easy and convenient installation .
  • All ports F-(f) connector, 75Ω .
  • Grounding terminal provided.
  • Screening factor:
    30-300MHz≥85dB
    300-470MHz≥80dB
    470-1000MHz≥75dB
