5.1GHz - 5.9 GHz 23dBi High Gain & Wide Band Panel Antenna

Model : APG-515923

APG-515923 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value.
The Panel antenna is designed for the 5.1-5.9GHz ISM band, supporting 5.1 to 5.9
GHz and provides superb performance in IEEE 802.11a WiMAX .
The antenna includes mounting bracket and hardware for up to 2" OD masts. Made with Apparel is ABS(UV) and Metal with an integrated N Female connector. The antenna "L" style staddle is have many action,
A user can adjust "L"style Up 3 0 ° and Down 3 0 ° and stong anchor manner.
The appearance of APG-515923 has good outdoors characteristic for the ABS,
APG-515923 all materials are all to consider good of watertightness and prevention rust
of characteristic, products all pass a strict test test, satisfy professional user for product need,
the APG-515923 can let the user be used for perpendicularity to turn very to turn with level very, letting the user do an usage according to the environment need

Electrical Specifications

    Frequency Range

    5100 - 5900 MHz

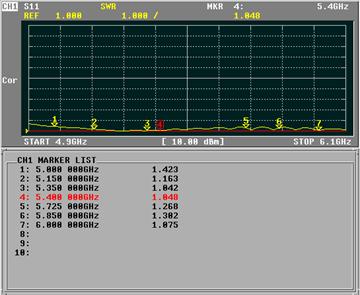

    V.S.W.R

    ≤ 1.5

    Return Loss

    ≥ -15db

    Gain

    23dBi

    Antenna Type

    PCB patch array

    Polarization

    Vertical or Horizontal

    Maximum Power

    10W

    Vertical Beam-with

    8 °

    Horizontal Beam-with

    8 °

    Impedance

    50Ω

    Connector

    N-Female

    Mechanical Specifications

    Length (max)

    370*370mm

    Depth

    25mm

    Weight

    1200g

    Wind Survival

    > 120 MPH

    Radome Material

    ABS + UV resistance

    Operating Temperature

    -4 0 °C to + 8 0 °C

    Down-tilt

    "L " Style 0- 3 0°

    Mounting / Clamps

    32 - 45mm / U-bolt

    RoHS Compliant

    Yes





Applications

  • 5.1 - 5.9 GHz ISM Band
  • 5.3 GHz Band Applications
  • 5.4 GHz Band Applications
  • 5.8GHz UNII applications
  • EEE 802.11a Wireless LAN
  • Unlicensed European 5.4 GHz Band Applications
  • WiMAX Technology
  • 5.8 GHz Wireless Video Systems
  • Features

    • Superior performance
    • Light weight
    • All weather operation
    • DC Short lightning protection
    • Installed for vertical
    • Includes tilt and swivel mast mount
    • Frequency Ultra-wide
    • Can be installed for either vertical or horizontal polarization
    • RoHS Compliant
