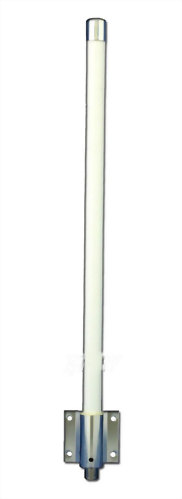

5.1GHz-5.9GHz 18dBi 120 deg Sector Directional Antenna

Model : ASC-51818

Electrical Specifications

Frequency Range 5100-5900 MHz
V.S.W.R ≤ 1.5:1
Antenna Type Collinear
Gain 18dBi
Polarization Vertical
Maximum Power 50W
Vertical Beam-with 10°
Horizontal Beam-with 120°
Impedance 50Ohm
Connector N-Female

Mechanical Specifications

Length 900mm
Diameter 180mm
Weight 2980g
Radome Material UV-Polymer
Operating Temperature -40°C to+80°C
Down-tilt 0 ~ 20 degrees

Applications:

  • 5.1~ 5.8 GHz Applications
  • 5.8 GHz UNII/ISM Band Application
  • IEEE 802.11a
  • Directional and multipoint applications
  • Wi-Max, CDMA
  • Public Wireless Hotspot
  • Wireless LAN systems

Features:

  • Superior performance
  • The weight is light
  • All weather operation
  • DC short lightning protection
  • Installed for vertical
  • Includes tilt and swivel mast mount
  • Frequency Ultra-wide
