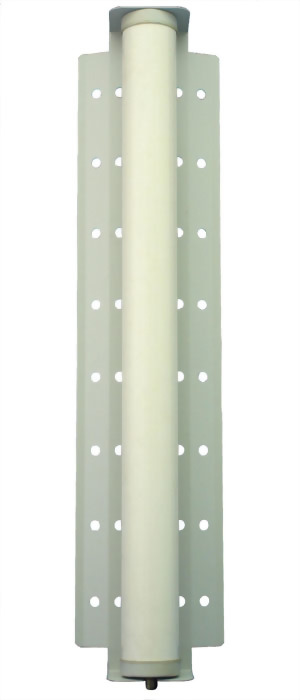

5.1GHz-5.9GHz 20dBi 120 deg Sector Directional Antenna
Model :
ASC-51820
Electrical Specifications
| Frequency Range | 5100 ~ 5900 MHz |
| V.S.W.R | ≤ 1.5:1 |
| Antenna Type | Collinear |
| Gain | 20dBi |
| Polarization | Vertical |
| Maximum Power | 50W |
| Vertical Beam-with | 6° |
| Horizontal Beam-with | 120° |
| Impedance | 50Ohm |
| Connector | N-Female |
Mechanical Specifications
| Length | 1280mm |
| Diameter | 200mm |
| Weight | 5290g |
| Wind Survival | >150 MPH |
| Radome Material | UV-Polymer |
| Operating Temperature | -40°C to +80°C |
| Down-tilt | 0 ~ 20 degrees |
Applications:
- 5.1~ 5.8 GHz Applications
- 5.8 GHz UNII/ISM Band Application
- IEEE 802.11a
- Directional and multipoint applications
- Wi-Max, CDMA,
- Public Wireless Hotspot
- Wireless LAN systems
Features:
- Superior performance
- The weight is light
- All weather operation
- DC short lightning protection
- Installed for vertical
- Includes tilt and swivel mast mount
- Frequency Ultra-wide
