Technical Specifications:

Operating range : 863~870MHz

Channel width: 1-5Mhz

Operation mode: Bi-directional, half-duplex, time division duplex

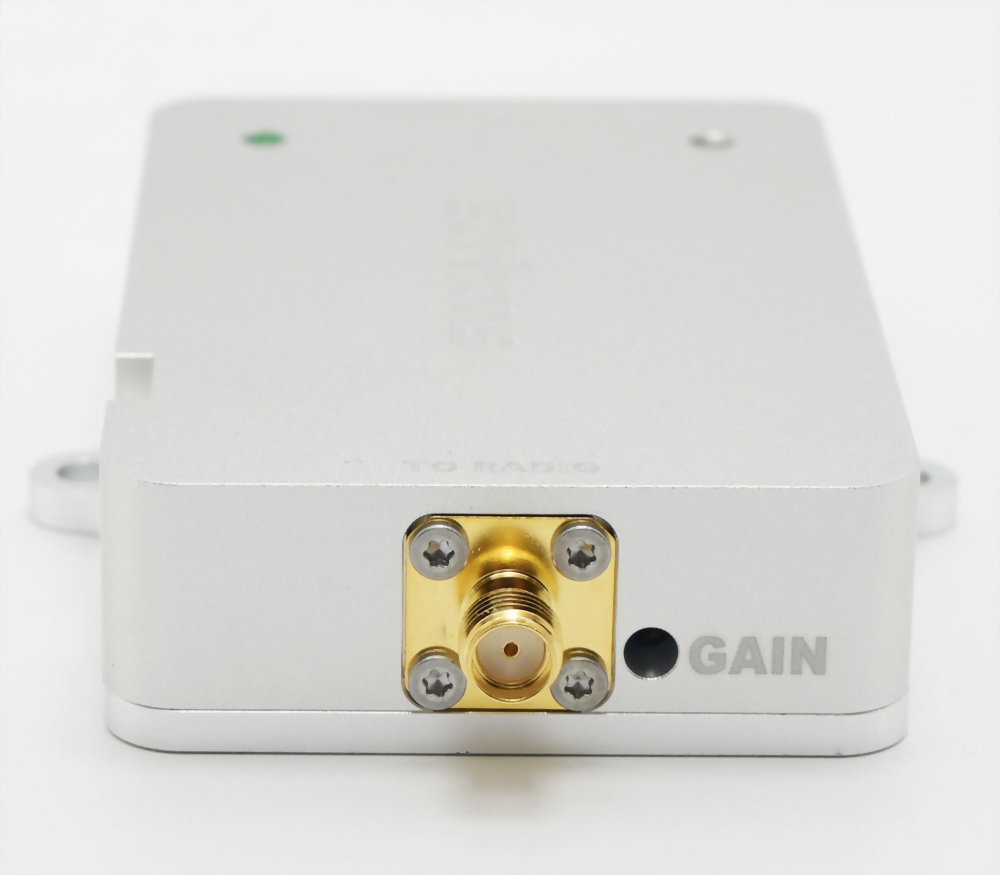

Connector type: To radio SMA female (hole inside).To antenna RP-SMA female (pin inside)

Output power: 1000mW (30dBm)

Input power: 0 ~ 23dBm

Transmit gain: 24dB typical

Receiver gain: 16dB typical

Noise figure: ≤3.5dB typical

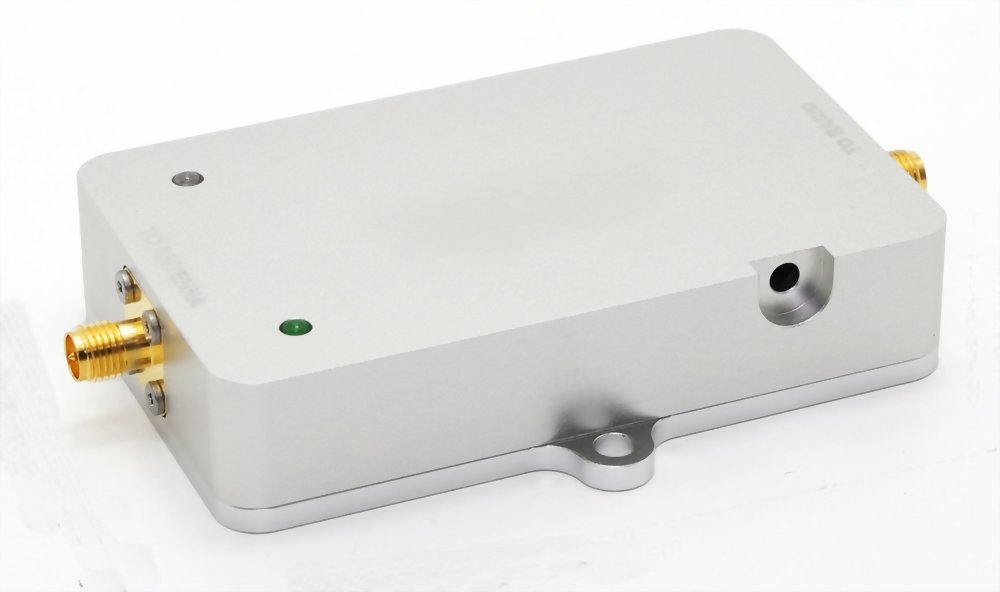

Frequency response: ±1dB over operating range Power adapter: 12V/2A DC, 100~240V Operating temperature: -20°C to +70°C Operating humidity: Up to 75% relative humidity Material: Cast aluminum

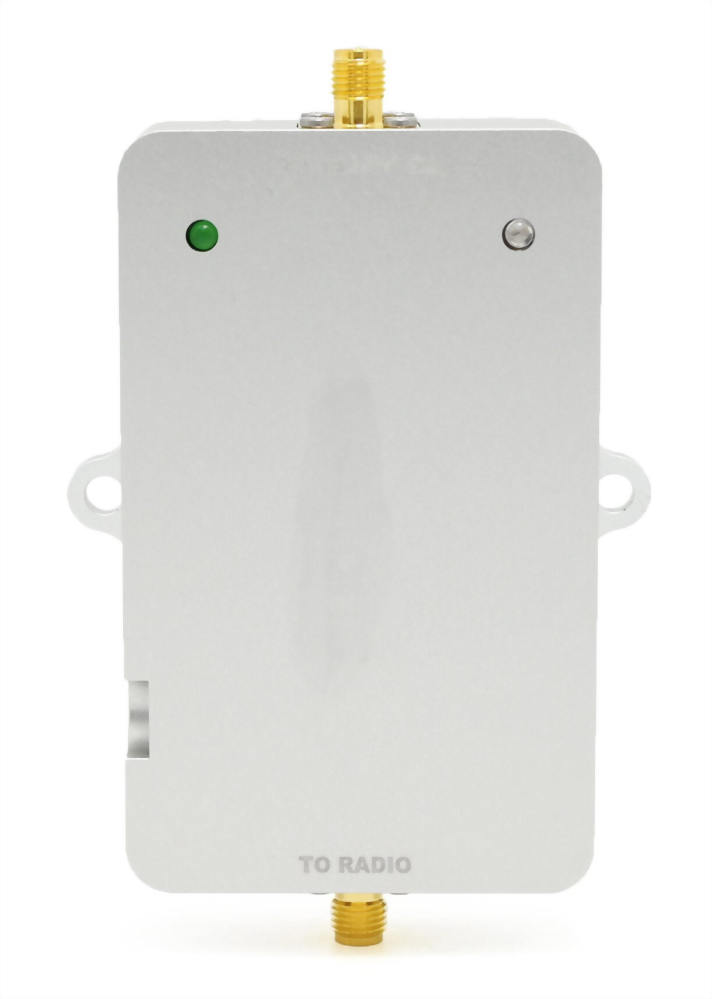

LED light: Power status / activity status LED Booster weight: 140g

Booster size: 9.7 x 6.4 x 1.7cm

1. 【Simply plug and play】 Extend the range of your wireless network with the Indoor Wifi Booster Amplifier. Plug and play connections,no software, no configuration and virtually no setup of software.

2.【Amplify 863~870MHz WiFi Signal】

AAM-86801-IDU Amplifier 868MHz,Bi-directional signal amplification module is suitable

for micro-power wireless products in the frequency range of 863~870MHz.

3.【Simply Plug and Play,Easy installation】

Sunhans 868MHz Bi-directional Amplifier,4.69 oz weighs,3.81x2.51x0.66 inches size,30dBm(1W) output power,

16dB receiver gain,24dB transmit gain,can be easily installed in 863~870MHz wireless products.

4.【Wide Application】

AAM-86801-IDU Amplifier, suitable for various IOT wireless data acquisition products working in the 863~870MHz frequency band,

for 863~870MHz WiFi Transmitter and Receiver, Helium, Miner, HNT, LoRaWAN , amateur radio, aviation, Sigfox device.
