Operating range : 902~928MHz

Channel width: 1-20Mhz

Operation mode: Bi-directional, half-duplex, time division duplex

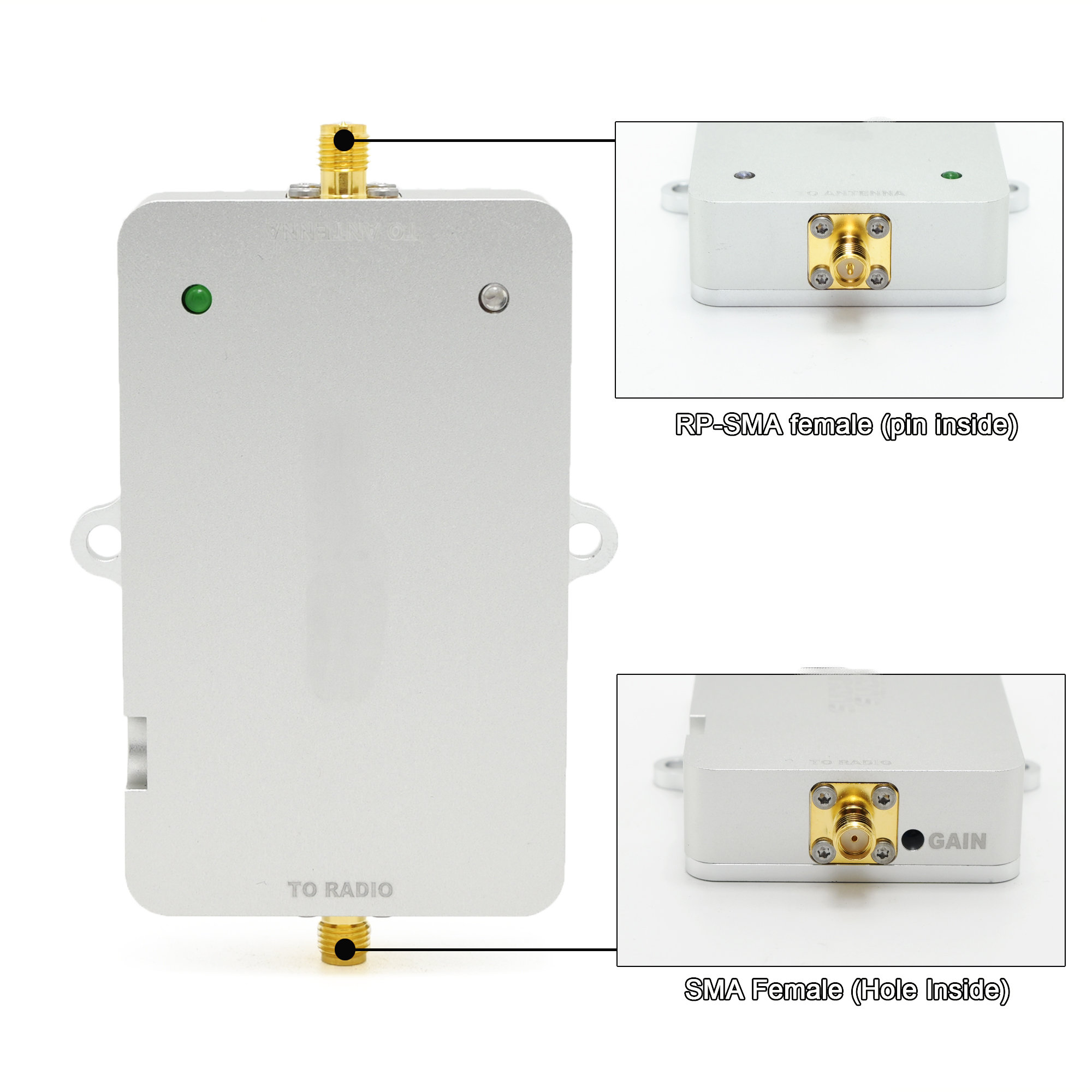

Connector type: To radio SMA female (hole inside).

                           To antenna RP-SMA female (pin inside) .

Output power: 1000mW (30dBm)

Input power: 0 ~ 23dBm

Transmit gain: 24dB  typical

Receiver gain: 16dB  typical

Noise figure: ≤3.5dB typical

Frequency response: ±1dB over operating range

Power adapter: 12V/2A DC, 100~240V

Operating temperature: -20°C to +70°C

Operating humidity: Up to 75% relative humidity

Material: Cast aluminum

LED light: Power status / activity status LED

Booster weight: 133g

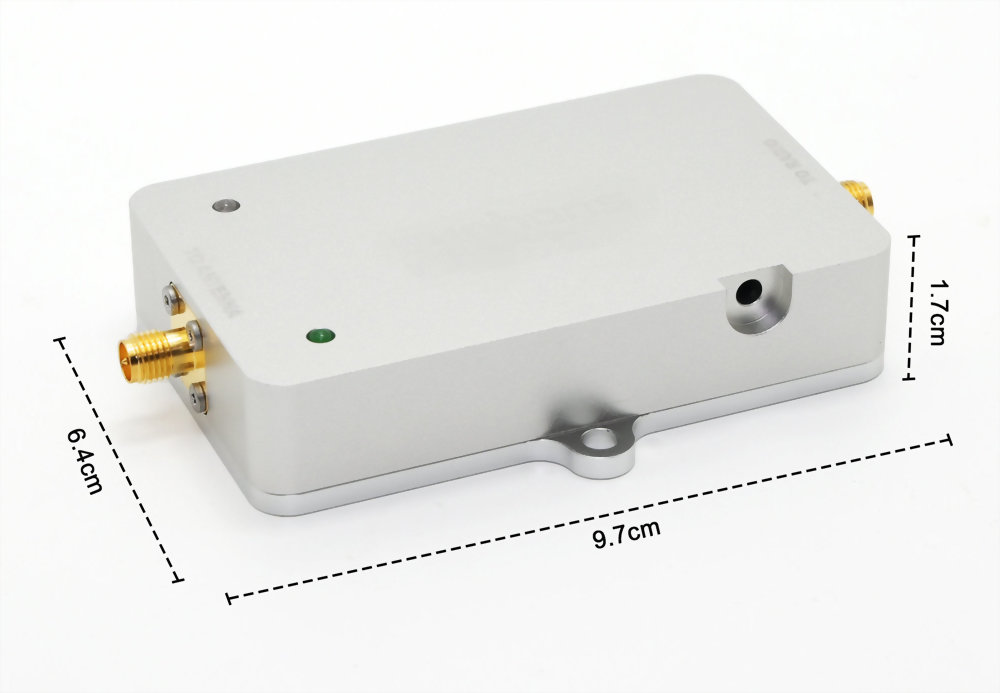

Booster size: 9.7 x 6.4 x 1.7cm

915MHz, Max. 1000mW output power;

Aluminum-alloy case by CNC, anti-interference;

Small size, Safe & Power saving;

Easy to install;

For 902~928MHz LoRaWan Module, LoRa IOT Transmitter Receiver Boost Helium, Miner, ZigBee, Sigfox....
