Cube Network Camera

2 Megapixel / H.264 / 720P Real-Timeapm
Model : AAL-8071-C

Camera

Sensor

2 Mega Pixel 1/4” CMOS sensor

Scan Method

Progressive

Lens

Fixed Lens 3.6mm

Number of Effective Pixel (H*V)

1600x1200

Minimum Illumination

0.1Lux (F1.6, AGC max.)

Horizontal Resolution

950TVL

Dynamic Range

71db

SNR(max)

42db

DNR

Auto

White Balance

Auto

Gain Control

High/Middle/Low, 3 steps selection

Flicker Control

Off/50Hz/60Hz, 3 steps selection

Electronic Shutter

Auto/Slow shutter

Video

Video Compression

H.264 (MPEG-4Part 10/AVC)/MJPEG,Dual codec

Video framerate

1600x1200@15fps/1280x720@30fps

Resolution

H.264 : 2M(1600x1200@15fps)

720P(1280x720@30fps)

MJPEG : 2M(1600x1200@5fps)

720P(1280x720@15fps

Bitrate control

CBR and VBR, 128kbps~4Mbps

Multi-streams

Dual streaming,Multiple profiles

1280x720 H.264@30fps/640x352 H.264(Sub)@30fps/

1280x720 MJPEG@15fps/

1600x1200 H.264@15fps/640x480 H.264(Sub)@15fps/

1600x1200 MJPEG@5fps

Digital Zoom (PC side)

1/4X, 1/3X, 1/2X, 1X, 2X, 4X

Image Rotation

Mirror, Flip, Rotate 180° / 90°

Intelligent Video

De-noise

Yes

Motion detection

Yes

Tamper detection

Yes

Privacy Mask

Yes

Audio

2 Way Audio

Bulit-in Microphone / Speaker

Compression

AMR, G.711 @ 64kbps, G.726 @ 32kbps/

Configure bit rate

Network

Streaming Protocols

RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/HTTP

tunneling, LAN Multicast, Multipart-JPEG

Supported Protocols

IPv4, IPv6, HTTP, UDP, TCP, ICMP, IGMP, ARP,

DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE,

DNS, DDNS, RTSP, RTP, RTCP, ONVIF

Storage

External

1x Micro SD Card (Maximum 32GB)

Processors and Memory

CPU

ARM9 SOC

Flash and Memory

16MB NOR flash,128MB DDRII

I/O and Connectors

LAN

1x RJ45 Ethernet connector

Audio

1x Internal Microphone-in

Software Compatibility

Browser

Internet Explorer 6.0 or above

Application Software

VMS Application Software

OS supported

Microsoft Windows 2000, XP , Vista, Windows 7

Open API



CGI commands to control camera

Media SDK to handle streaming

Factory Default



Button

Power

Power

DC 12V

DC12V/ POE

Power Consumption

TBD

Demension



107.9mm(L)x64mm(W)x37.1mm(D)

Weight



TBD

Operating Environment

Operating temperature

0°C~ +45°C

Storage temperature

-10°C~ +60°C

Humidity

20% ~ 80% non-condensing

Certification



CE, FCC Class B, RoHS

Warranty



24 months

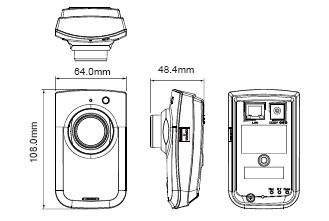

Dimension Diagram



2 Megapixel 1/4” CMOS Sensor in High Resolution

H.264/MJPEG Dual Codec & Streaming simultaneously

Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)

Fixed Lens 3.6m

3D Noise Reduction

2 Way Audio Support

Intelligent Video Analytics

Microphone and Speaker Embedded

Micro SD Card Supported (SDHC up to 32GB)

DV12V & PoE Power Over Ethernet IEEE802.3af (Option)
