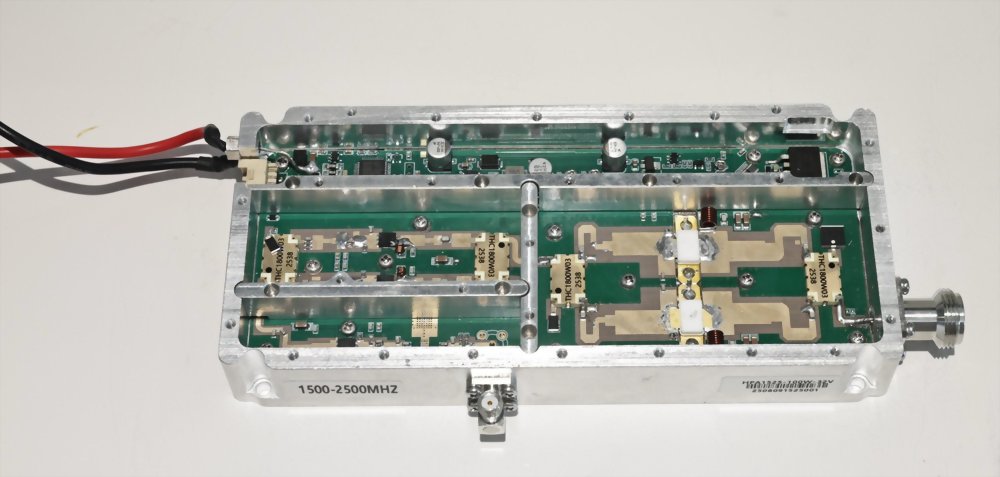

RF Power Amplifier Module
Output Power: 100W
Mechanical Specifications
• Package Type: Metal module
• Cooling Method: Bottom-mounted heat sink
• Connector Type: N or customizable RF connector
• Cooling Requirement: Forced air cooling or conductive heat sink
• Mounting Method: Screw-fixed installation
Performance Parameters
|
Item |
Specification |
Unit |
Remarks |
|
Frequency Range |
1500–2500 |
MHz |
|
|
Working voltage |
32 |
V |
28-32 |
|
Maximum output power |
100 |
W |
100W@9A Typical Value |
|
Power amplifier efficiency |
35 |
% |
@100W |
|
Maximum gain |
55 |
dB |
Maximum power gain |
|
Gain flatness |
≤5 |
dB |
|
|
Standard input power |
5 |
dBm |
|
|
Maximum non -damaged power |
≤10 |
dBm |
|
|
|
Output Port VSWR |
≤2 |
|
No power, network score test |
|
|
High and low temperature test |
working environment temperature |
-10～+55℃ |
℃ |
|
|
Power stability |
±1.0@-40℃～ +55℃ |
dB |
|
|
|
Power supply requirements |
≥11A@+32V DC |
|
Continuous wave output 100W |
|
|
Power supply interface |
Feedthrough Capacitor |
|
|
|
|
Control communication interface |
485 communication protocol TTL communication |
|
Support temperature,current, voltage detection,radio frequency output power detection 2.54mm 2*4 seats TTL communication can communicate with the digital source, set the digital source frequency band and output power |
|
|
RF output connector |
|
|
Input SMA Output N-Female |
|
|
Size |
170*77*24.5 |
mm |
|
|
|
Weight |
750 |
g |
|
|
|
Installation hole |
152.3*71.5 |
mm |
M3.0*4 |
|
• Wide frequency coverage
• High output power
• GaN technology: high efficiency, high temperature tolerance, high voltage resistance
• Built-in temperature control and SWR protection
• High linearity and low distortion
