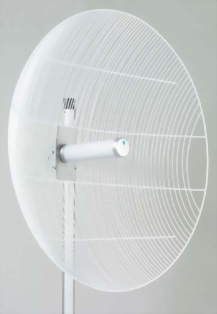

Directional Grid Antenna for 5.1 ~ 5.9GHz
Model :
ACO-51829
| Electrical Specification | |
| Frequency Range: | 5.1 ~ 5.9 GHz |
| Part Number | ACO-51829 |
| Polarizatin | Linear |

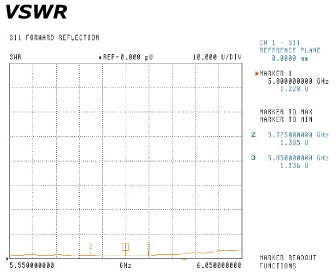

| V.S.W.R. | 1 : 1.5 Max |
| Impedance | 50 OHMS ± 5Ω |
| Gain | 29 dBi |
| Power handling | 25W Max |
| Front to back ratio | 35dB |
| HPBW / horizontal | 8° |
| HPBW / vertical | 5° |
| Mechanical Specification | |
| Connector Tyep | N Type Female |
| Length | 900mm |
| Weight | 4.86kg |
| Radome color | White |
| Radome materal | ABS |
