Directional Panel Antenna for 2.4 ~2.5 GHz

Inquiry ()

Directional Panel Antenna for 2.4 ~2.5 GHz

Model : APG-2418

Q'ty :

Specifications

Electrical Specification
Frequency Range:	2.4 ~ 2.5 GHz
Part Number	APG-2418
Polarizatin	Linear
V.S.W.R.	1 : 1.5 Max
Impedance	50 OHMS ± 5Ω
Gain	18 dBi
Power handling	20W Max
Front to back ratio	30dB
HPBW / horizontal	30°
HPBW / vertical	20°

Mechanical Specification

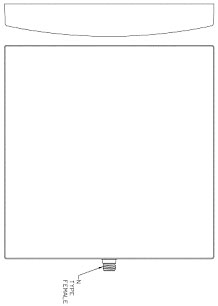

Connector Tyep	N Type Female
Length	263x263x30mm
Weight	1.68kg
Radome color	White
Radome materal	PVC
