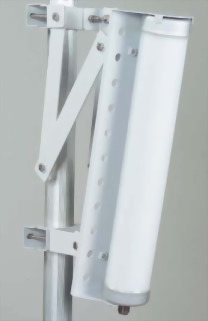

Directional Sector Antenna for 2.4 ~2.5 GHz
Model :
ASC-2412
| Electrical Specification | |
| Frequency Range: | 2.4 ~ 2.5 GHz |
| Part Number | ASC-2412 |
| Polarizatin | Linear |
| V.S.W.R. | 1 : 1.3 Max |
| Impedance | 50 OHMS ± 5Ω |
| Gain | 12 dBi |
| Power handling | 15W Max |
| Font to back ratio | 25dB |
| HPBW / horizontal | 25dB° |
| HPBW / vertical | 10° |
| Mechanical Specification | |
| Connector Tyep | N Type Female |
| Length | 370x130x65mm |
| Weight | 2.36kg |
| Radome color | Gray-white |
| Radome materal | ABS |
