Dish Antenna

Model : ACO-496332MM

Electrical Specification

Frequency

4900-5150MHz

5150-5800MHz

5800-6300MHz

Polarization Type

±90

Gain

30±1 dBi

32±1 dBi

32±1 dBi

VSWR

1.8:1

1.8:1

1.8:1

Horizontal beamwidth

5°±0.5°

4°±0.5°

4°±0.5°

Vertical beamwidth

5°±0.5°

4°±0.5°

4°±0.5°

Front-to-back ratio

32dB

35dB

35dB

Isolation

30

Input Impedance

50 Ω

Max power

50W

Lightning protection

DC Ground

Mechanical Specification

Connector Type

2*N Female

DimensionsD*H

900*420mm(35.5*16.5in)

Radiating Element Material

Aluminium

Reflector Material

Aluminium

Weight

8.5kg

Mounting Pole

 Φ40Φ70mm

Operating temperature

-40ºC60ºC

Wind Load

200 km/h (survival)

Water Proofing

IP-65

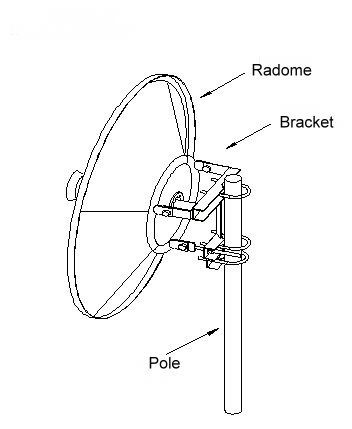

1-1_034426.jpgInstallation Guide:

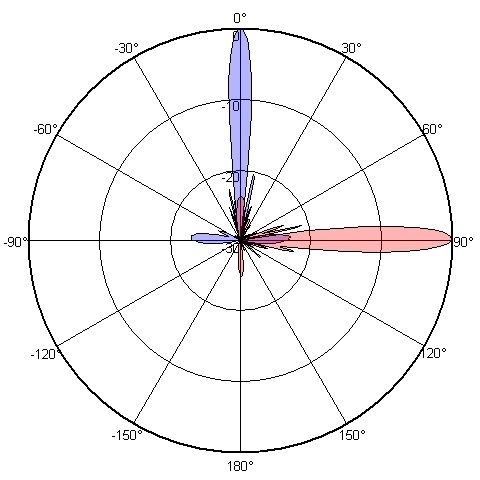

Pattern:


                       5.1GHZ                                             5.9GHZ
