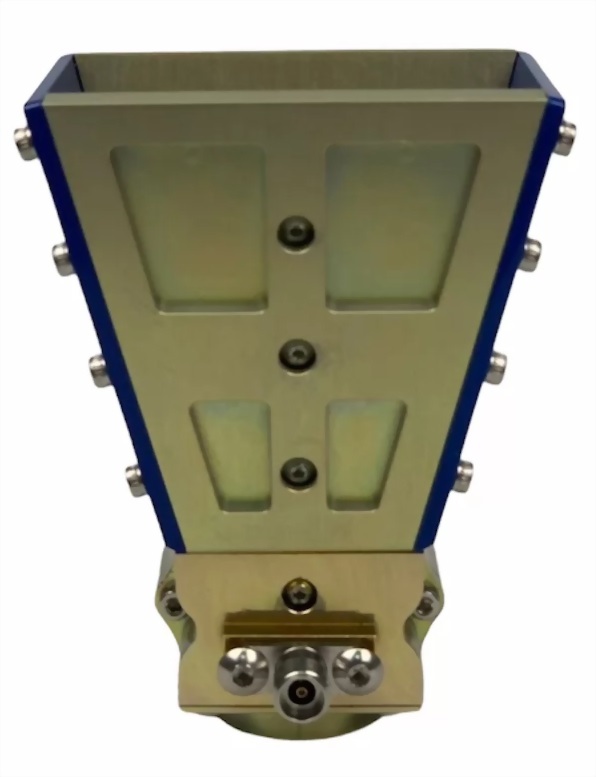

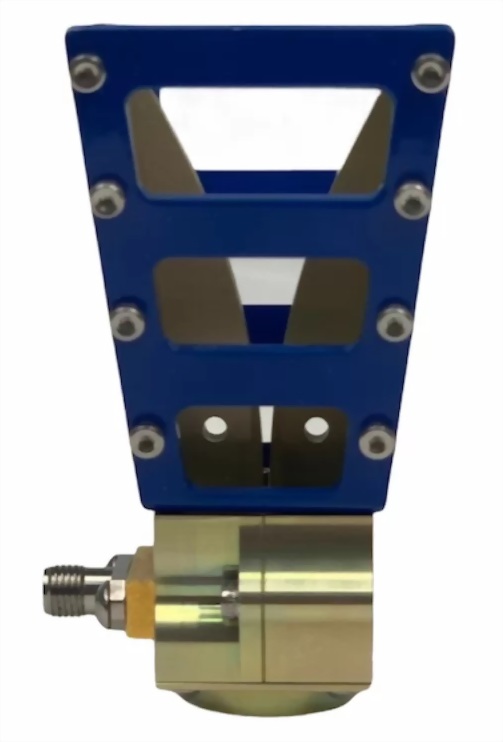

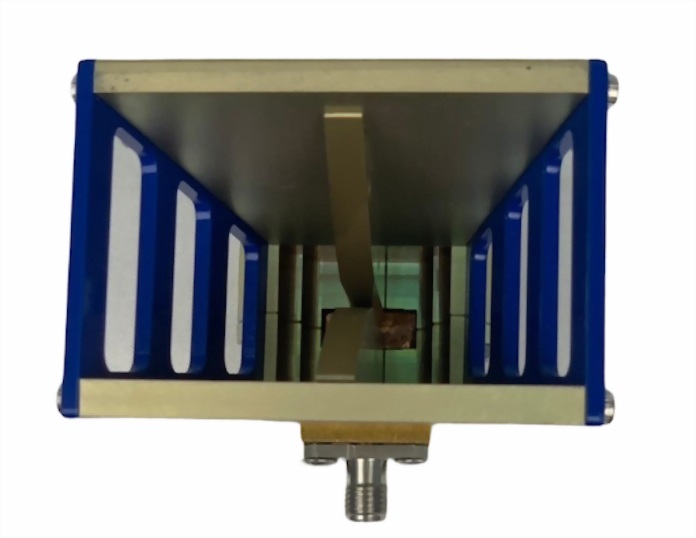

Double-Ridged Horn Antennas
Electrical Specifications
Frequency Range
5GHz - 40GHz
V.S.W. R
2.5 :1 (Avg)
Antenna Type
Horn
Radiation
Directional
Gain
1-15 dBi
Antenna Factor
40- 51 dB/m
Polarization
Vertical or Horizontal
Maximum Power
25W
Vertical Beamwidth
44 Deg
Horizontal Beamwidth
38 Deg
Impedance
50 Ohm
FBR
24 db
Antenna Design
Double-Ridged
Internal Material
Aluminum
Connector
2.92mm- Female
Mechanical Specifications
|
Length x Width |
104 x 55 mm |
|
Height |
43 mm |
|
Antenna Weight |
93.1 g |
|
Accessories |
50 g |
|
Application |
Indoor |
|
Parts Material |
Aluminum |
|
L Mount Style |
M5 or 5mm |
|
Mounting |
L Type Aluminum |
|
Mount Style |
Antenna Mounting M2.5mm |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS, WEE, CE, FCC |
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- Horn Antenna frequency from 5 GHz to 40 GHz
- 6061 Aluminum metal alloy
- Stainless Steel 2.92mm Female
- Taiwan Design, Made in Taiwan
