Standard Gain Horn Antenna

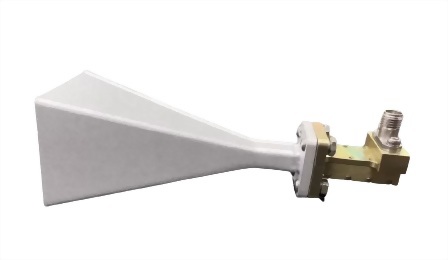

WR28 26.5GHz to 40GHz 20dbi Standard Gain Waveguide Horn Antenna Flange: UBR
Model :
HS-028-UBR-20A-KF
Custom design
- Waterproof structure
- PTZ Controlling function
- Tripod or antenna mounting design
- Customize Color
Specifications
- Waveguide: WR-28
- Frequency: 26.5 to 40GHz
- Gain: 20 dbi
- Max Power: 250W
- H-plane (-3db): 17
- E-plane (-3db): 18
- Size (mm): 20.5x42.1x104
- Weight (g): 30
- Waveguide Flange: UG/599U
- Connector: K-Female
- V.S.W.R:1.25
- Uniform Gain
- Waveguide Flange UBR
- Aluminum metal alloy
- Consolidated performance database
- Stainless steel 2.92mm-Female
- EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
- Calibration devices that measure the gain of other antennas
