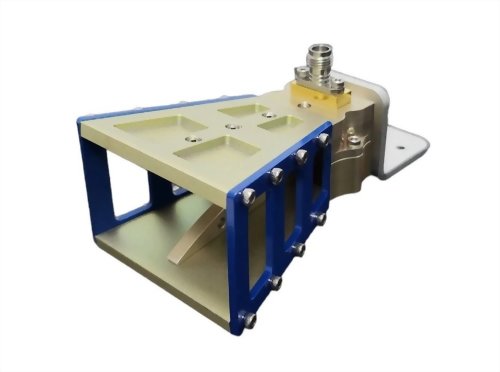

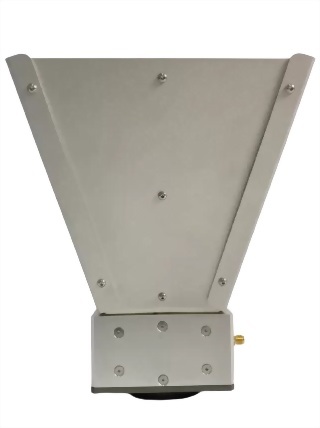

Standard Gain Horn Antenna
Electrical Specifications
Frequency Range
12.4 GHz – 18 GHz
V.S.W. R
<1.5:1
Antenna Type
Horn
Radiation
Directional
Gain
13-17 dBi
Antenna Factor
38 - 41 dB/m
Polarization
Vertical or Horizontal
Maximum Power
250 Watts
Vertical Beam-width
32 Deg
Horizontal Beam-width
30 Deg
Impedance
50 Ohm
FBR
31 db
Flange
Connector
SMA-Female
UG/599U
Mechanical Specifications
|
Dimension |
92.5x 50x35mm |
|
Antenna Weight (N.W) |
50 g |
|
Application |
Indoor |
|
Parts Material |
Aluminum |
|
L Mount Style |
N/A |
|
Indexing Ring Mounting |
N/A |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS, WEEE, CE, FCC |
- Uniform Gain
- Aluminum metal alloy
- Consolidated performance database
- Stainless steel SMA-Female
- EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
- Calibration devices that measure the gain of other antennas
