InfraRed System Thermo Image System
Technical Specification (Infrared Camera Devices):
• Materia: Aluminium Die Casting
• Lens Material: Ge
• Lens Size: 85mm / 4t
• Sensor Type: UnCooled Focal Plane Array
• Thermo Image Pixels: 640(H) x 480(V)
• Infrared Spectral Range: 8 ~ 14 µm
• Resolution ( NETD ): <=0.04ºC ( @30ºC )
• Accuracy: ±2ºC or ±2% ( @25ºC )
• Measuring Range: -15ºC~ 120ºC
• Thermo Lens: 20mm / F1.0
• Power Supply: DC12V
• Operation Temperature: -34ºC~ 50ºC
• Operation Humidity: 90%RH
• Storage Temperature: -50ºC~ 80ºC
• IP Rating: IP66
• Weight: 3.6 Kgs
• Dimension( W x H x L ): 195mm x 146mm x 530mm
( w/ 20mm Lens )

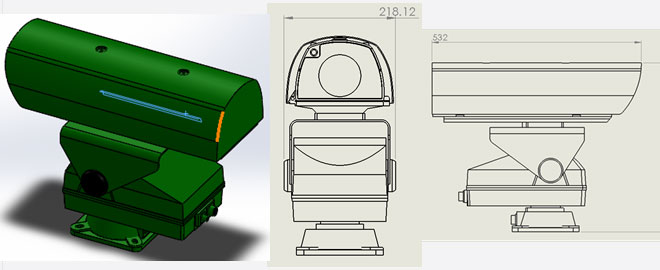

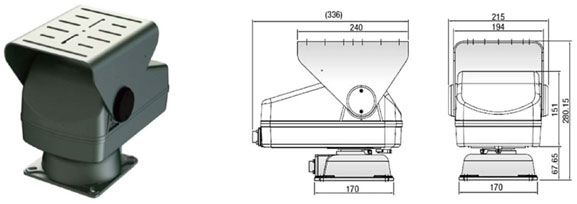

Technical Specification (Gimbal Spec):
• Material: Aluminium Die Casting and High Performance Plastic
• Pan Range: 360 Degrees
• Tilt Range: -75 Degrees ~ 25 Degress
• Accuracy: +/- 0.1 Degrees
• Max Pan Speed: 60 Degrees / Sec
• Max Tilt Speed: 25 Degrees / Sec
• Min Pan Tilt: 0.025Degrees / Sec
• Min Tilt Sped: 0.025 Degrees / Sec
• Gimbal Control Interface: RS-485 ( 2400 ~ 19200 Bps ) Pelco-D/P
• Device Control Interface: 100BASED-T
• Interface Connector: 4 pin + 15 pin MS 端子
• Gimbal Payload: Max 20 Kgs
• Gimbal Power Supply: DC 48V
• Power Consumption: 25W – 150W
• Operation Temperature: -34ºC ~ 50ºC
• Operation Humidity: 90%RH
• Storage Temperature: -50ºC~ 80ºC
• IP Rating: IP66
• Weight: 10 Kgs
• Dimension ( W x H x L ): 215mm x 280mm x 366mm ( w/ 20mm Lens )
• Defence and Surveilance System
• Water Proof Design
• Military Grade
• Auto Detect Target Temperature been set
• Up to 2Km for thermo image detection
( Customized Design are available )
