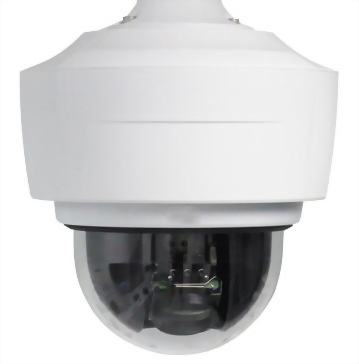

Mini IP Dome Camera
Model :
AAL-9071
|
Camera
|
||
|
2 Mega Pixel CMOS sensor | |
|
Progressive | |
| Lens | 3.6mm , F1.8 | |
| Number of Effective Pixel (H*V) | 1600 x1200 | |
| Minimum Illumination | 1Lux (AT 10 IRE F1.8 Lens) | |
| 71db | ||
| SNR(max) | 42.3db | |
| Auto White Balance | Yes | |
| Auto Gain Control | Yes | |
| Backlight Compensation | on/off | |
| Noise Reduction | Tes | |
| Electronic Shutter & | Auto, Slow Shutter(2X~32x) | |
| Manual Shutter | ||
| Pan Coverage | 20° (-10°~+10°) | |
| Tilt Coverage | 90° (-0°~90°) | |
|
Video
|
||
| Video Compression | MJPEG and H.264 Dual codec, dual streaming | |
| (720P/30FPS+VGA/30FPS), multiple profiles, 3GPP | ||
| Video framerate | dual streaming (720P/30FPS+VGA/30FPS) | |
| Resolution | H.264 : HD(1280x 720), D1, CIF, QCIF | |
| MJPEG: 1600x1200, 1280x720, 800x600,D1 ,CIF, QCIF | ||
| Bitrate control | 16kbps ~ 4Mbps | |
| Digital Zoom (PC side) | Yes, x 1/2, x 2, x 4 | |
| Image Rotation (PC side) | Mirror | |
| DNR | Yes | |
|
Audio
|
|
| 1-way audio | Yes |
| Compression | AMR, G.711 , G.726 / Configure bit rate |
|
Protocol Supported
|
|
| Streaming Protocols | RTSP/RTP/UDP,RTSP/RTP/TCP,RTSP/RTP/HTTP tunneling, |
| LAN multicast | |
| Other protocols | IPv4, HTTP, TCP, ICMP, QoS, DHCP, NTP, SMTP, FTP, UPnP, |
| PPPOE, DNS, DDNS | |
|
3GPP
|
|
| Yes | |
|
Processors and Memory
|
|
| CPU | ARM9 SOC |
| Flash and Memory | 16MB ROM, 256MB DDRII RAM |
|
I/O and connectors
|
|
| Reset to Factory default | Button |
| Lan | RJ-45 connector |
| Audio | internal mic x 1 |
|
Software
|
|
| Browser | Internet Explorer 6.0 or above |
| Application Software | VMS-64 application software |
| OS supported | Microsoft Windows 2000, XP , Vista, Windows 7 |
|
Features
|
|
| User Setting | |
| Date/ Time Setting | |
| Video image control | |
| Upload configuration | |
| Dynamic DNS | |
| Motion Detection | |
| Events | |
| Triggered Actions | |
|
Open API
|
|
| CGI commands to control camera | |
| Media SDK to handle streaming | |
|
Factory Default
|
|
| Button | |
|
Power
|
|
| Power | DC 12V, AC24V/ POE , DC12V/ POE (option) |
| Power consumption | |
|
Size
|
|
| Main body | Φ107.1mm X 49.7mm |
|
Operating environment
|
|
| Operating temperature | -10°C~ +50°C |
| Storage temperature | -20°C~ +60°C |
| Humidity | 0% ~ 90% non-condensing |
|
Approvals
|
|
| CE, FCC Class A, RoHS | |
Dimension Diagram
Features
- 2 MegaPixel sensor
-
With high-definition
2 megapixel (1600 x 1200) resolution. - 720P HD+VGA dual streaming real time.
- H.264/ MJPEG dual codec simultaneously.
