Open Boundary Double-Ridged Horn Antennas

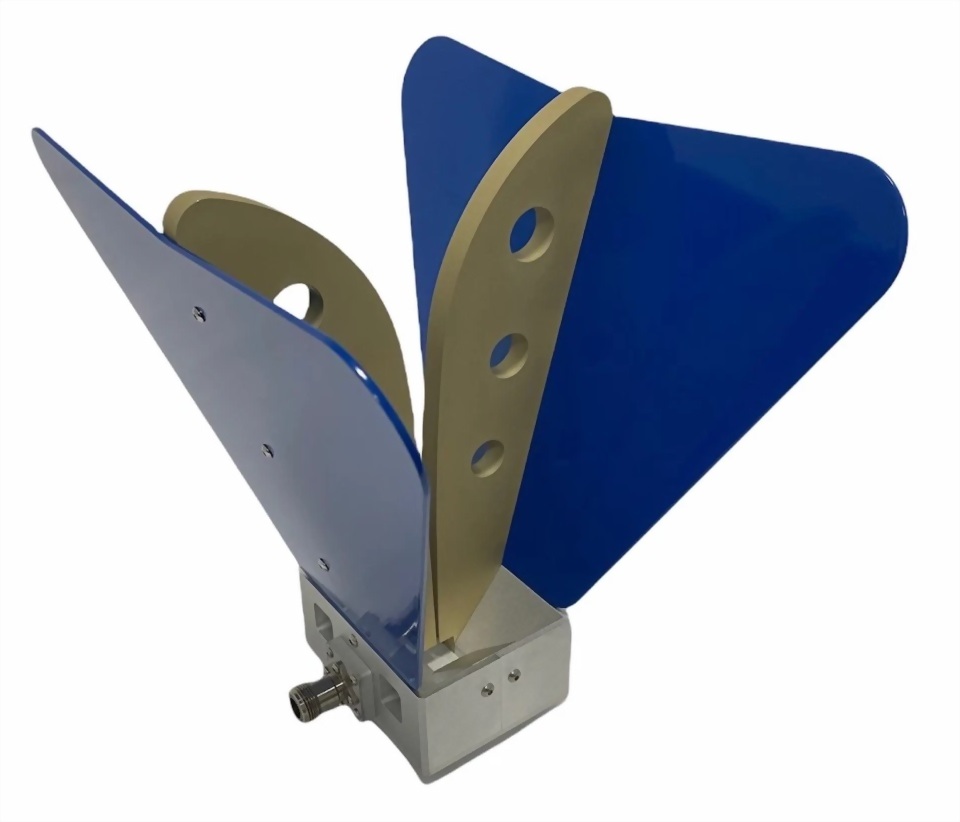

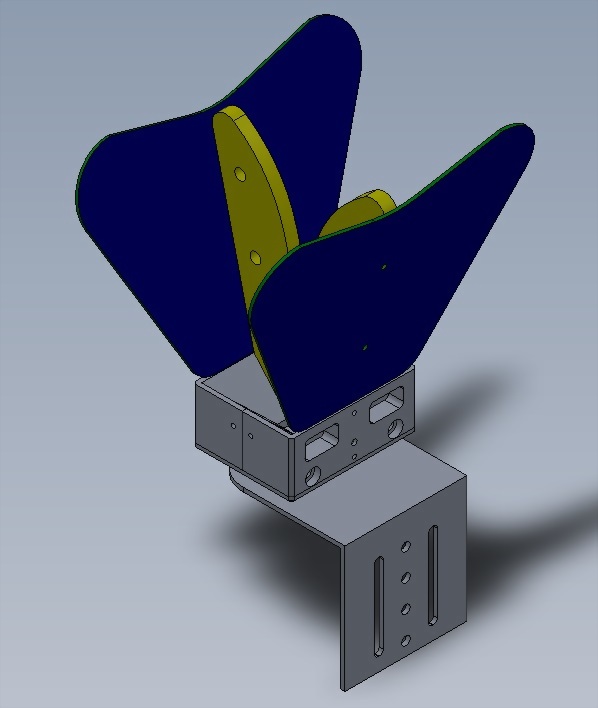

800MHz to 18GHz Open Boundary Double Ridge Broadband Horn Antenna
Model :
HB-08M18G-NF
Mechanical Specifications
| Model : | HB-08M18G-NF |
| LxWxH : | 204x208x168mm |
| Connector : | N-Female |
| Styling : | Open Boundary Double Ridge |
| Gain : | 3dbi-14dBi |
| -3db Beam-width : | 17 deg- 70 deg |
| N.W. : | 1.05 KG |
| Frequency : | 800MHz-18GHz |
| Polarization : | Vertical or Horizontal |
- High Power 500W (peak) 300W (Cont)
- DC Short lightning protection
- Low VSWR
- Uniform Gain
- Consolidated performance database
- 800MHz to 18GHz Open Boundary Double Ridged Horn Antenna
- 6061 Aluminum metal alloy
- Stainless Steel N-female
- Taiwan Design, Made in Taiwan
