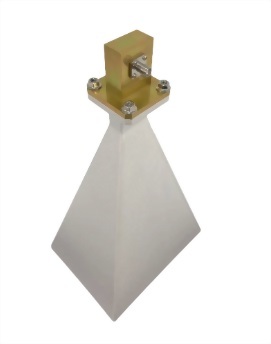

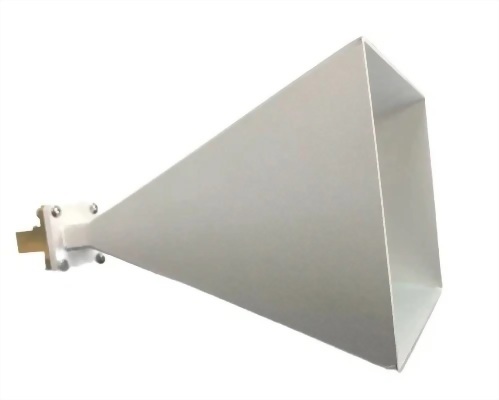

Standard Gain Horn Antenna
Electrical Specifications
Frequency Range
12.4 GHz – 18 GHz
V.S.W. R
<1.5:1
Antenna Type
Horn
Radiation
Directional
Gain
13-17 dBi
Antenna Factor
38 - 41 dB/m
Polarization
Vertical or Horizontal
Maximum Power
250 Watts
Vertical Beam-width
32 Deg
Horizontal Beam-width
30 Deg
Impedance
50 Ohm
FBR
31 db
Flange
Connector
SMA-Female
UG/599U
Mechanical Specifications
Dimension
92.5x 50x35mm
Antenna Weight (N.W)
50 g
Application
Indoor
Parts Material
Aluminum
L Mount Style
N/A
Indexing Ring Mounting
N/A
Storage Temperature
-20 to +80
Operating Temperature
-10 to +60
Operating Humidity
10%~70% non-condensing
Storage Humidity
5%~50% non-condensing
Safety, Emission and other
RoHS, WEEE, CE, FCC
- Uniform Gain
- Aluminum metal alloy
- Consolidated performance database
- Stainless steel SMA-Fema
- EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
- Calibration devices that measure the gain of other antennas
