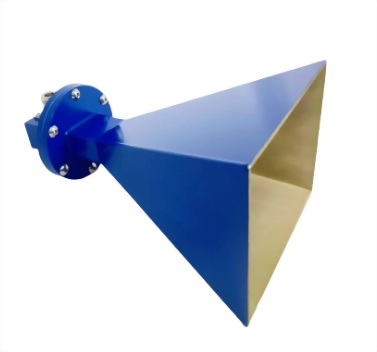

Standard Gain Horn Antenna
Electrical Specifications
Frequency Range
5.85GHz to 8.2GHz
V.S.W. R
1.5:1 (avg)
Antenna Type
Horn
Radiation
Directional
Gain
15 dBi
Polarization
Vertical or Horizontal
Maximum Power
300 Watts
Horizontal Beamwidth
23 Deg
Vertical Beamwidth
20 Deg
Impedance
50 Ohm
Antenna Design
WR137
Connector
N-Female
- Original Model: HS-13715A-NF
- Uniform Gain
- Aluminum metal alloy
- Consolidated performance database
- EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
- Calibration devices that measure the gain of other antennas
