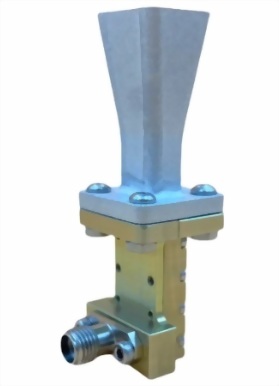

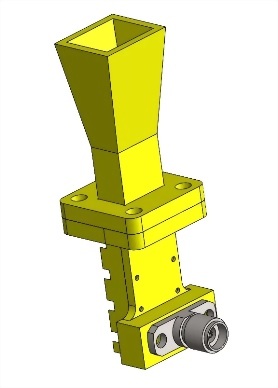

Standard Gain Horn Antenna
Custom design
- Waterproof structure
- PTZ Controlling function
- Tripod or antenna mounting design
- Customize Color
Electrical Specifications
Frequency Range
26.5GHz to 40GHz
V.S.W.R
<1.5:1
Antenna Type
Standard Gain Horn
Radiation
Directional
Gain
10dBi
Polarization
Vertical or horizontal
Maximum Input Power
250W
Vertical Beamwidth
30 deg
Horizontal Beamwidth
42 deg
Impedance
50 Ohm
Waveguide Coaxial Adapter
Connector
2.92mm-Female
2.4mm-Female (Custom)
WC-28-UBR-A1-KF
Mechanical Specifications
|
Antenna Weight (N.W) |
0.015kg |
|
Application |
Indoor |
|
Material |
Aluminum |
|
Wind Survival |
Greater than 150MPH |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +60 |
|
Operating Humidity |
10%~90% non-condensing |
|
Storage Humidity |
5%~90% non-condensing |
|
Safety, Emission and other |
RoHS |
- Uniform Gain
- Aluminum metal alloy
- Consolidated performance database
- Stainless steel 2.92mm-Female
- EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
- Calibration devices that measure the gain of other antennas
