Waveguide Adapter

WR90 8.2GHz to 12.4GHz End Launch Waveguide Adapter SMA-Female

Model : AWC-090-UBR-E1-SF

Q'ty :

Custom design:

Waterproof structure
PTZ Controlling function
Tripod or antenna mounting design
Customize Color

Electrical Specifications

Frequency Range	8.2GHz - 12.4GHz
V.S.W.R	1.3:1
Radiation	Directional
Polarization	Vertical or Horizontal
Maximum Power	200 Watts
Impedance	50 Ohm
Waveguide Flange	UG-39/U
Connector	SMA-Female

Mechanical Specifications

Dimension	41.4x41.4x43.5mm
Antenna Weight (N.W)	70 g
Application	Indoor / Outdoor
Parts Material	Aluminum
Storage Temperature	-20 to +80
Operating Temperature	-10 to +60
Operating Humidity	10%~70% non-condensing
Storage Humidity	5%~50% non-condensing
Safety, Emission, and other	RoHS

Meet international standards
Good appearance design

WR90 End Launch Waveguide Coaxial Adapter Flange: UBR UG-39U, 8.2 GHz to 12.4 GHz, SMA-Female Connector
Using with

Related Products

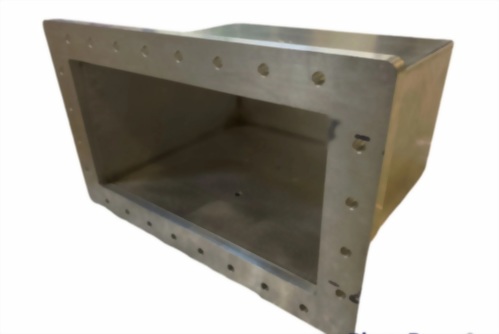

Waveguide Adapter
