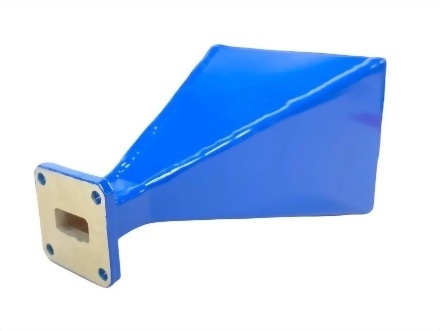

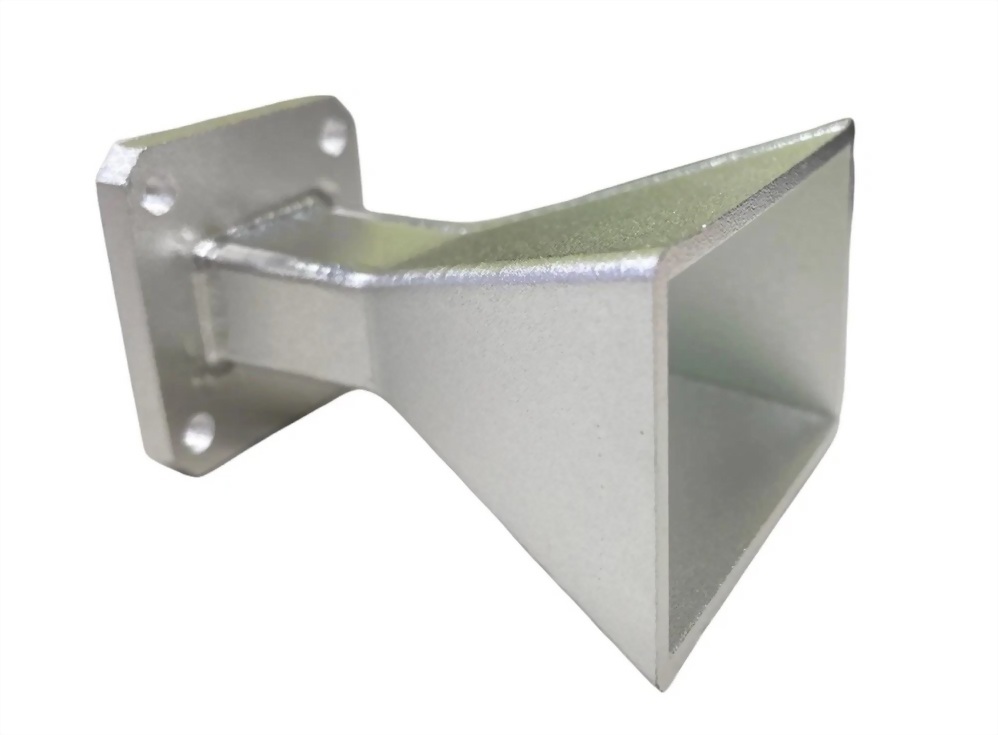

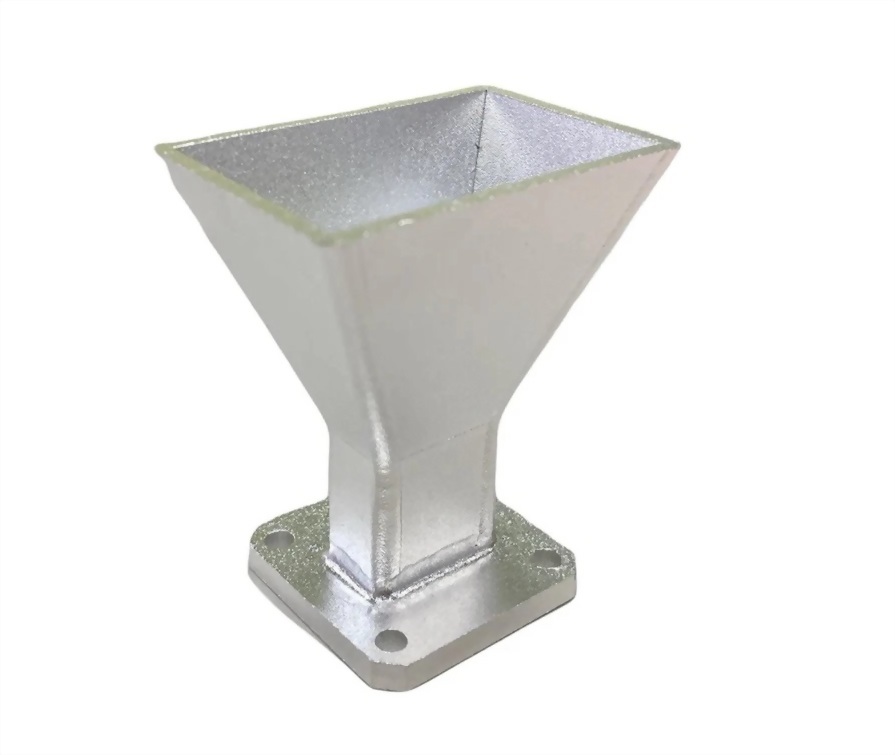

Waveguide Input Horn Antenna Flange
Custom design:
Electrical Specifications
Frequency Range
12GHz to 18GHz
V.S.W.R
1.3 :1 (avg)
Antenna Type
Horn
Radiation
Directional
Polarization
Vertical or Horizontal
Vertical Beamwidth
31 Deg
Horizontal Beamwidth
32 Deg
Antenna Design
Waveguide input
Waveguide Type
WR62 / WG18 / R140
Flange
Mechanical Specifications
Antenna Weight (N/A)
30 g
Application
Indoor
Parts Material
Aluminum
Screw Holes
Diameter M4*4
Storage Temperature
-20 to +120
Operating Temperature
-20 to +80
Operating Humidity
10%~70% non-condensing
Storage Humidity
5%~50% non-condensing
Safety, Emission, and other
RoHS
UBR UG-2664/U
Dimension (mm)
35x50x60
