Custom design:

• Waterproof structure
• PTZ Controlling function
• Tripod or antenna mounting design
• Customize Color

Specifications:

• Model: WI-42-UBR-20
• Waveguide:WR-42
• Frequency:18 to 26.5GHz
• Gain: 20 dbi
• Max Power (W):500W
• H-plane (-3db): 20 deg
• E-plane (-3db): 19 deg
• Size(mm): 63x48x99mm
• Weight (g): 50
• Waveguide Flange:UG-419/U
• V.S.W.R: 1.3
• Material: Aluminum

• Meet international standards
• Good appearance design

• Original Model No.: WI-42-A1-20

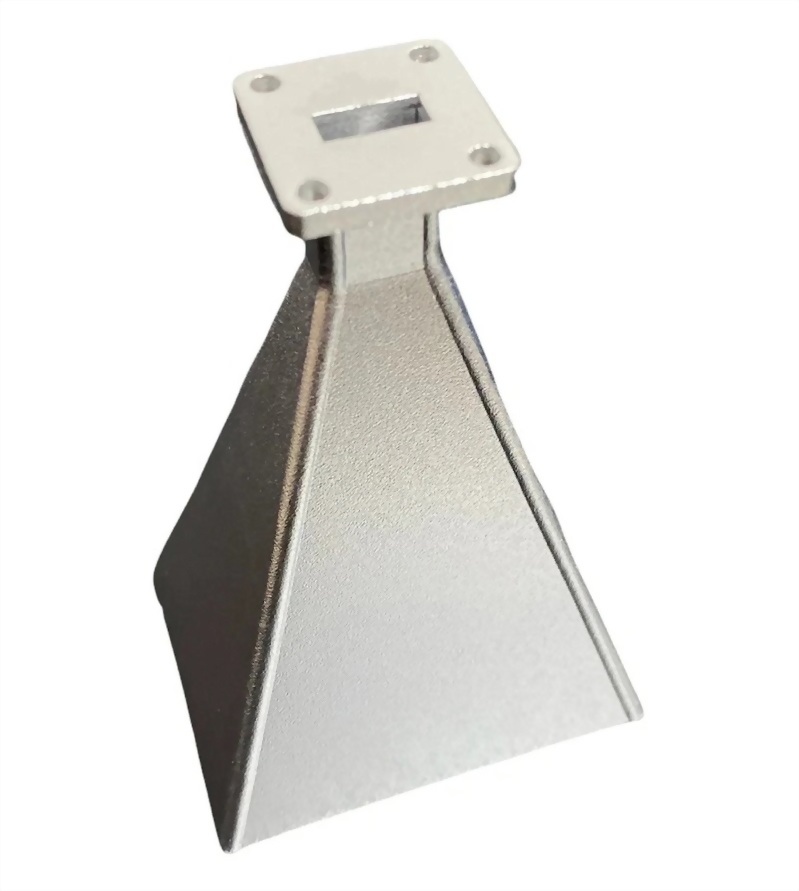

  WR42 Waveguide Input Horn Antenna Flange: UBR UG-419/U without an adapter, 18 GHz to 26.5 GHz 20dbi
• EMI/EMC testing
• Antenna gain measurements.
