APM CO.,LTD of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 5GHz antenna that implements an SMA-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.

The AAM-5810-IDU-M2 efficiently increases signal reach of any antenna by up to 200%-400%.

The AAM-5810-IDU-M2 are been used to increase the power and/or the signal for different products like:

- Routers

- Access points

- IP cameras

- Video senders

- Profesional photo cameras

- Profesional video cameras

- R/C helicopters, planes and cars

Operating range : 5000~5875MHz

Channel width: 20Mhz&40Mhz&80Mhz

Supported standards: IEEE 802.11a/n, 2Tx2R

Operation mode: Bi-directional, half-duplex, time division duplex, MIMO

Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)

Output power: 1000mW (30dBm)

Input power: 0 ~ 20dBm

Transmit gain: 15 ~ 18dB

Receiver gain: 9 ~ 11dB

Noise figure: ≤3.5dB typical

Frequency response: ±1dB over operating range

Power adapter: 12V/2A DC, 100~240V

Operating temperature: -20°C to +70°C

Operating humidity: Up to 90% relative humidity

Material: Cast aluminum

LED light: Power status LED and activity status LED

Booster weight: 178g

Booster size: 8.5 x 7 x 2cm

Package weight: 500g

Package size: 21.3 x 15 x 6cm

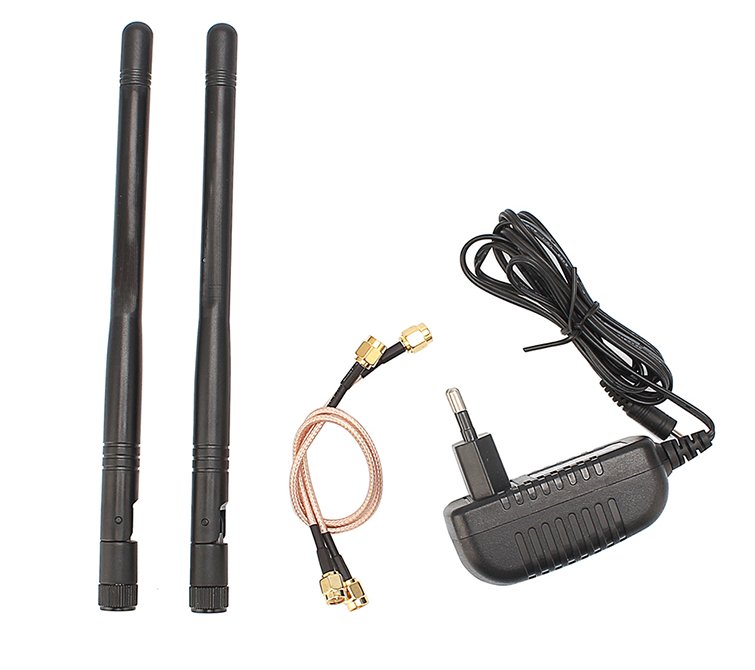

Package contents:

1 x AAM-5810-IDU-M2

2 x RG316 cable with SMA connectors (20cm)

2 x 6dBi omni antenna

1 x power supply

1 x user manual
