WiFi Signal Booster

Model : AAM-5840-IDU

APM CO.,LTD of WiFi boosters is designed for use in mobile and/or mesh wireless networking applications. Designed for bi-directional signal amplification, In contrast, traditional analog amplifier technologies can go into saturation or reduce transmit power as input signal fluctuates, negatively impacting signal quality and network performance. Can be used any 5GHz antenna that implements an SMA-Male connector. The small footprint and low profile design makes it an ideal solution for mounting on vehicles or in other space constrained applications.

The AAM-5840-IDU efficiently increases signal reach of any antenna by up to 200%-400%.

The AAM-5840-IDU are been used to increase the power and/or the signal for different products like:

- Routers

- Access points

- IP cameras

- Video senders

- Profesional photo cameras

- Profesional video cameras

- R/C helicopters, planes and cars

Operating range : 5000~5875MHz

Channel width: 20Mhz&40Mhz&80Mhz

Supported standards: IEEE 802.11a/n

Operation mode: Bi-directional, half-duplex, time division duplex

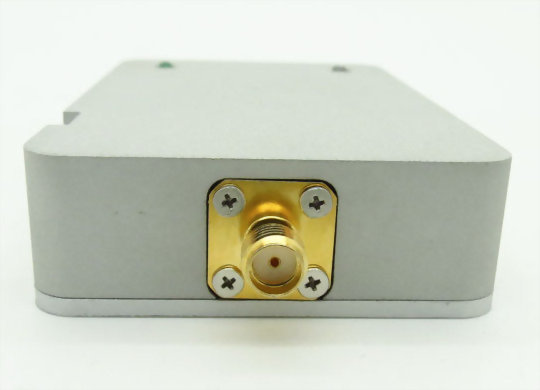

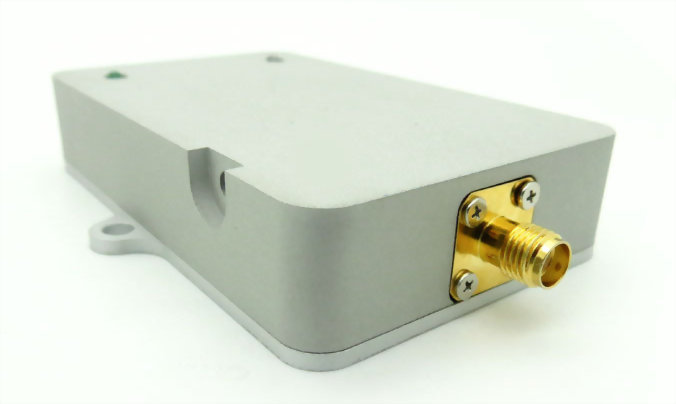

Connector type: To radio SMA female (hole inside). To antenna RP-SMA male (pin inside)

Output power: 4000mW (36dBm)

Input power: 0 ~ 20dBm

Transmit gain: 18 ~ 20dB

Receiver gain: 11 ~ 14dB

Noise figure: ≤3.5dB typical

Frequency response: ±1dBoveroperatingrange

Power adapter: 12V/2A DC, 100~240V

Operating temperature: -20°C to +70°C

Operating humidity: Up to 75% relative humidity

Material: Cast aluminum

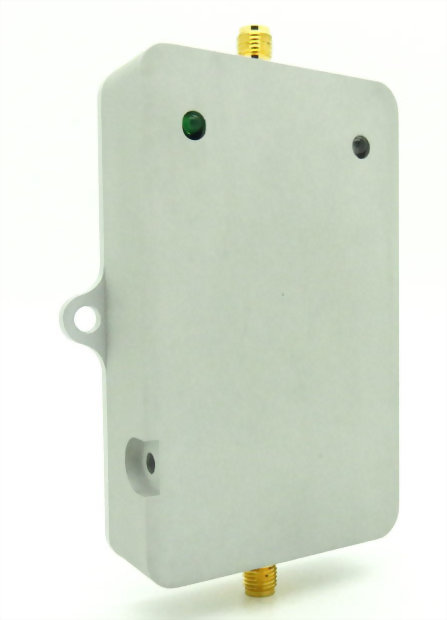

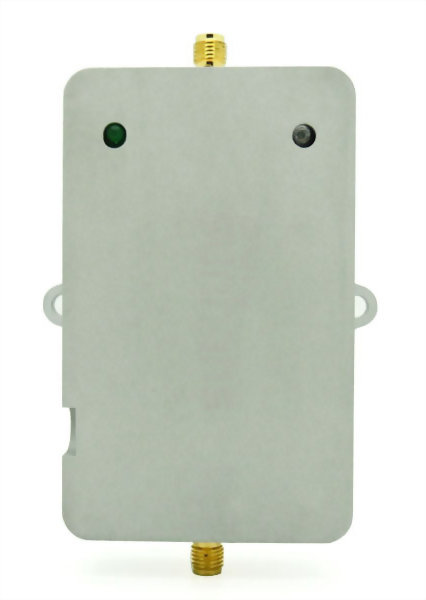

LED light: Power status LED and activity status LED

Booster weight: 135g

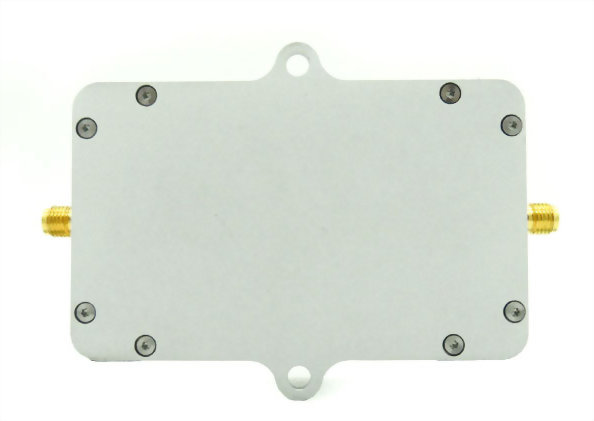

Booster size: 9.7 x 6.4 x 1.7cm

Package weight: 420g

Package size: 21.3 x 13.5 x 5cm

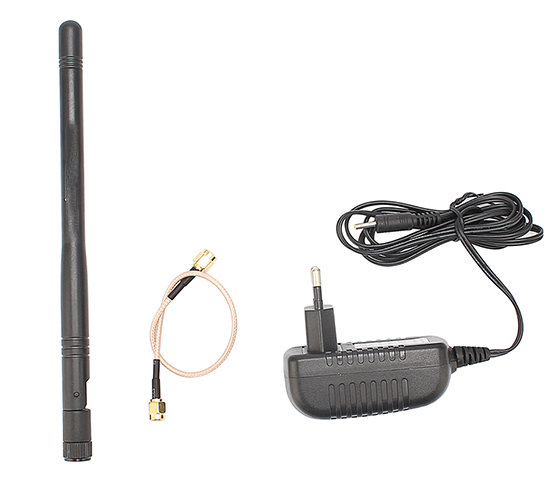

Package contents:

1 x AAM-5840-IDU

1 x RG316 cable with SMA connectors (20cm)

1 x 6dBi omni antenna

1 x power supply

1 x user manual

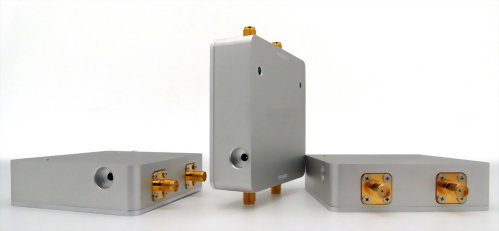

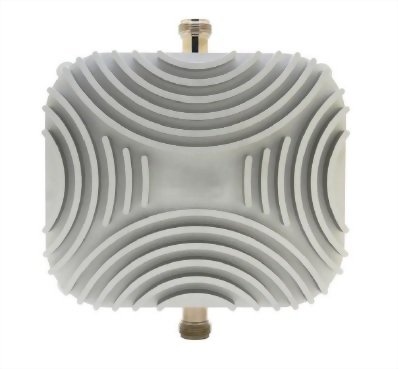

Related Products
