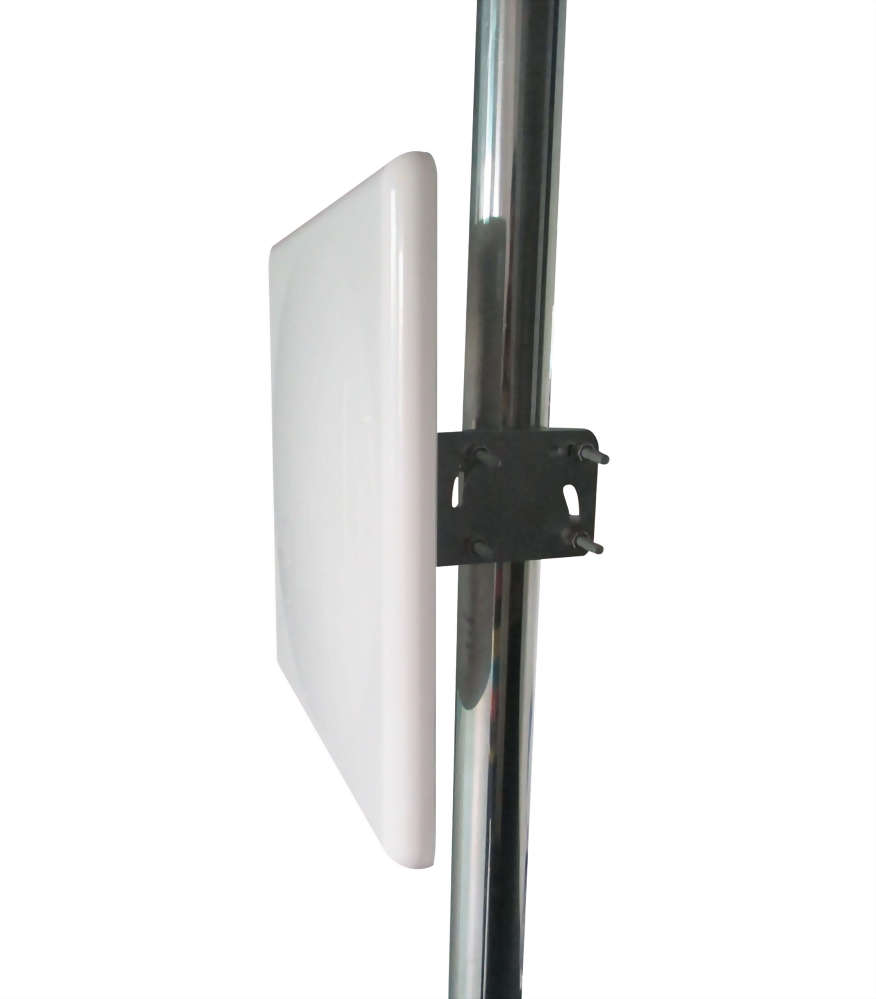

• 2.4/5.8GHz MIMO Antenna

2.4/5.8GHz MIMO Antenna

Model : APG-24581317M2

Frequency (MHz)

2400-2500/5150-5850

Gain

13±1dBi

17±1dBi

VSWR

≤1.5:1

≤1.7:1

Polarization Type

Vertical/Horizontal

Horizontal beamwidth

38°±3°

38°±3°

Vertical beamwidth

40°±3°

18°±3°

Dimensions(mm)

305*305*25

Connector Type

2*N-K
