• 2.4 GHz DIY SEAL B

2.4 GHz DIY SEAL B

Model : APG-2418H

Electrical Specifications:

OX
Frequency Range 2.4 ~ 2.4835 GHz
VSWR ≤ 2.0
Impedance 50Ω  5Ω Gain 18 dBi Polarization Vertical Power Handling 10 Watt
Beam Width H: 24.9/ E:18.8

Mechanical Specifications:
Connector SMB MALE to SMA MALE RS Operation Temp. -30 ~ +60
Material Radome: ABS
Mount: Plating Zinc iron plate. Dimension (L*W*H) 371.9 *341.92 *63.5 mm
Weight 2636 g  30g (w/ mount)
Color Cool Gray 5C

3D Illustration

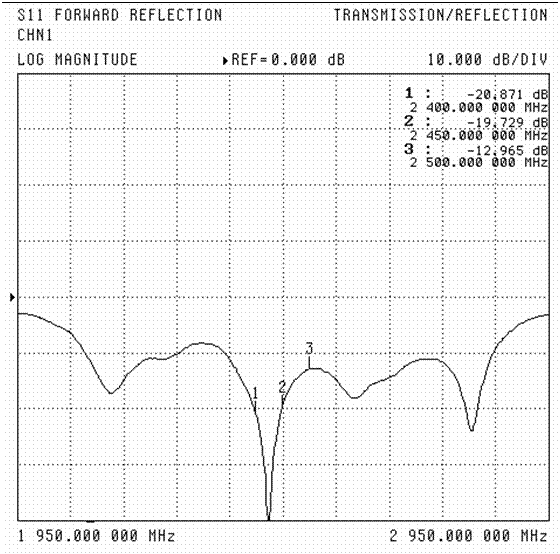

RETURN LOSS
