• 2.4 GHz DIY SEAL BOX

2.4 GHz DIY SEAL BOX

Model : APG-2412H

Electrical Specifications:
Frequency Range  2.4 ~ 2.4835 GHz

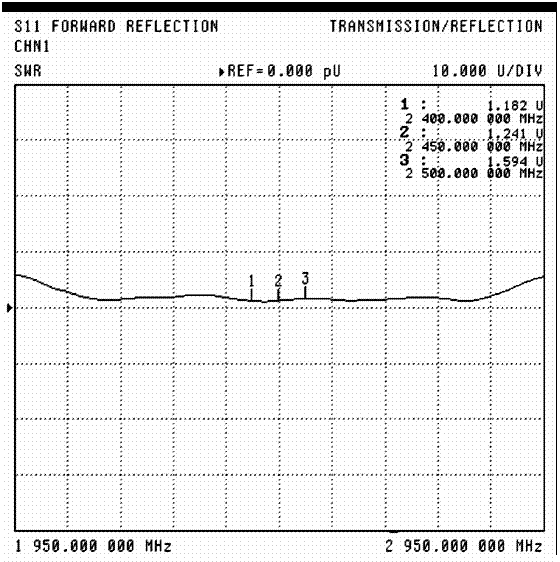

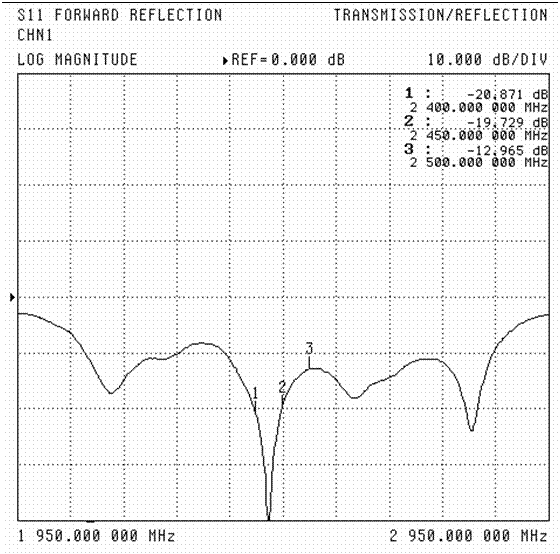

VSWR≤2.0
Impedance 50Ω ± 5Ω Gain 12 dBi Polarization Vertical Power Handling 10 Watt
Beam Width H: 41.3/ E: 34.5

Mechanical Specifications:
Connector SMB Male to SMA Male RS Operation Temp.-30 ~ +60
Material Radome: ABS
Mount: Zinc alloy Dimension (L*W*H) 197.5 *197.5 *63 mm Weight 630g /30g (w/ mount)
Color Cool Gray 5C

3D Illustration
