2.4 GHz DIY SEAL BOX

Model : APG-5814H

Electrical Specifications:
Frequency Range5.1 ~ 5.8 GHz
VSWR ≤ 2.0
Impedance 50Ω ± 5Ω Gain 14 dBi Polarization Vertical Power Handling 10 Watt
Beam Width H: 33.4°/ E: 36.9°

Mechanical Specifications:
Connector SMB Male to SMA Male RS Operation Temp. -30°C ~ +60°C
Material Radome: ABS
Mount: Zinc alloy Dimension (L*W*H) 197.5 *197.5 *63 mm Weight 630g ± 30g (w/ mount) Color Cool Gray 5C

3D Illustration

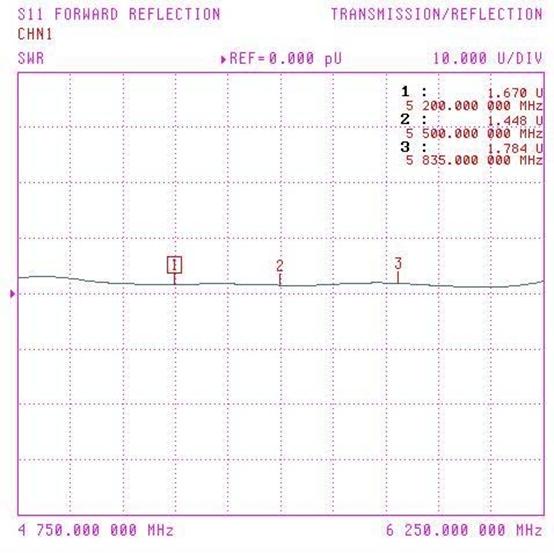

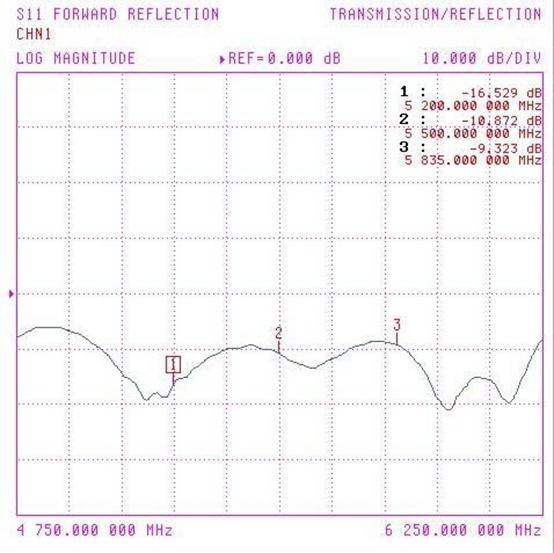

RETURN LOSS                                                                      SWR



 H-PLANE                                                                           E-PLANE
