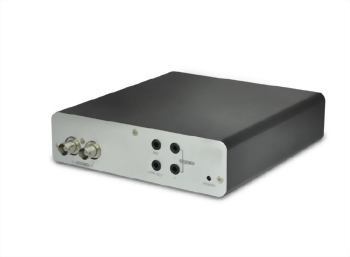

2CH Real-Time / D1/H.264

Model : AAL-2071

Video compression

Compression

H.264, MJPEG, 3GPP

Resolution

D1 (704x480/NTSC, 704x576/PAL)

CIF (352x240/NTSC, 352x288/PAL)

QCIF (176x120/NTSC, 176x144/PAL)

Frame rate

30fps @ D1 resolution (NTSC)

25fps @ D1 resolution (PAL)

Bit rate control

Both CBR and VBR

Multi-streams

Maximum 3 video streams: 1x D1, 1x CIF,and 1x QCIF for recording, preview, and 3GPP respectively

Video processing

De-interlace

3D

Motion detection

3D

Blind detection

Yes

OSD

Yes

Privacy mask

Yes

Video Input

Composite input

2x CVBS, 1.0Vp-p 75 ohm BNC connector

AudioI

Compression

G.711 @ 64kbps

G.726 @ 32kbps

AMR

Audio line input

2x line-in 3.5mm jack

Audio line output

1x line-out 3.5mm jack, Full Duplex Audio

Microphone input

1x MIC in 3.5mm jack, Full Duplex Audio

Alarm

Input

4x TTL terminal block

DC12V (100mA)out

Alarm in use

Output

4x Relay

Camera control

Serial port

1x RS-485

Storage

External

1x SD card

Other I/O

Factory Default

Button

LED

Power LED (Red LED)

Network

Ethernet

1x RJ-45 Ethernet connector with LED

Protocol

IPv4, HTTP, UDP, TCP, ICMP, IGMP, ARP, DHCP, NTP, SMTP, FTP, SAMBA, UPnP, PPPoE, DNS, DDNS, RTSP, RTP, RTCP

Software

Web browser

Microsoft Internet Explorer 6.0 or above

Application Software

VMS-64 application software

PTZ protocols

Pelco-P, Pelco-D

Compatible platforms

STD, ZTE, HXHT, Alcatel

Power

Power

12V DC

Power consumption

12W

Operating environment

Operating temperature

-10°C~ +50°C

Storage temperature

-20°C~ +70°C

Storage humidity

10% ~ 90% non-condensing

Open API

CGI commands to control camera

Media SDK to handle streaming

Physical properties

Dimensions

40.5(H) x 145(W) x 165.5(L) mm

Weights

TBD

Certification

Safety and EMI

CE, FCC class A, RoHs

Accessories

Wall mount bracket with 4 screwsCD-ROM:

e-manual and VMS SW Quick guide

Dimension Diagram





Features

˙High resolution up to D1

˙H.264/MJPEG

˙Supports IP address filtering

˙2- Way audio in video server

˙3GPP/SD Card support

˙3D De-interlace, 3D Noise reduction

˙Digital I/O for External Sensor and Alarm

˙RS-485 Remote PTZ camera control (Pelco-P, Pelco-D)
