Decoder
Model :
AAL-7200D

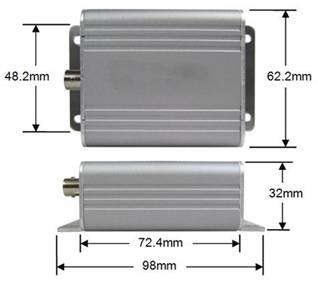

Mechanical Specifications

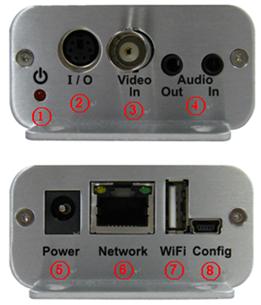

Mini-Din I/O Socket
BNC Video Input
Audio Line In/ Out
12V DC Power Input
RJ-45 Ethernet Port
USB Host for Wi-Fi Support
Mini-USB Config Port
| System | CPU | ARM 9 Based 32 Bit RISC |
| SDRAM | 64 MB | |
| Flash | 8 MB | |
| Embedded OS | Linux 2.4 | |
|
Compression�V Video/Audio |
Video Output | Analog NTSC or PAL |
| Decompression | M-JEPG and MPEG-4 Source Auto Detection | |
| Picture Resolution | Full D1 (720x480 in NTSC, 720x576 in PAL) | |
| Image Frame Rate |
NTSC: 30 fps at Full D1 Resolution PAL: 25 fps at Full D1 Resolution |
|
| Video Sequencing | Up to 8 Pre-defined Video sources | |
| Audio Format | 8 kHz Stereo, ADPCM | |
| Audio Output | 8 kHz Stereo, ADPCM | |
| IP Network | Ethernet | RJ45 -10/100 Base-T |
| Protocol | TCP/IP,DHCP, HTTP, UDP | |
| I/O Connector | Network | RJ-45 Ethernet Port |
| Mini-DIN | 6 Pin for DI/DO/RS-485 | |
| Video Output |
Composite Video BNC 1.0Vp-p with 75Ω Loading |
|
| Audio Output |
3.5mm Audio Jack of Stereo Line Out for Active Speakers |
|
| USB A-type | For External Wi-Fi Client Adaptor* | |
| Mini-USB Port | Mini-USB Config Port | |
| Event Management | OSD | Video Source Loss / Network Loss / Motion Detection Alert from the Source |
| Mechanical Info | Power Supply | DC 12V / 350mA |
| Dimension | 32(H)X98(W)X62.2(D)mm | |
|
Minimum System Requirements |
CPU | Pentium 4, 2.4GHz and Above |
| Hard Disk | 40 GB or Above | |
| Memory | 512 MB or Above | |
| Operating System | Windows XP with SP2 or Above / Windows 2000 with SP4 or Above / Vista 32 | |
| Video Resolution | SVGA or XGA with 1024x768 Resolution | |
| Software | DirectX 9.0C or Above | |
|
Management & Support |
Configuration | IP Surveillance Utility |
| USB Port | Mini-USB Config Port / Mini-USB Female Socket for Network Setting | |
| Web Browser | Microsoft Internet Explorer 6.0, or Above | |
| Security | Password Protection | |
|
Operating Environment |
Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 20% ~ 80% RH | |
| Standard Accessories | Power Adapter, USB Cable, Mini-Din Cable | |
| CD-ROM (User Manual, Free Bundle NVR) | ||
Power LED
Features
- USB Host WiFi Adaptor Support
- MPEG-4 / M-JPEG Streaming Source Auto-detection
- Support RJ485 PTZ Control via Joystick or Keypad
- Full D1 High Quality Resolution
- Users can construct a TV wall to slide each image
