Video Server
Model :
AAL-7264

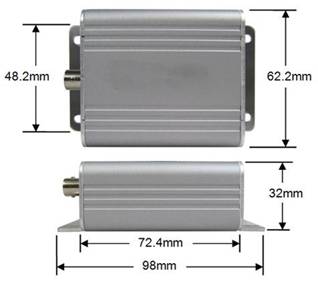

Mechanical Specifications

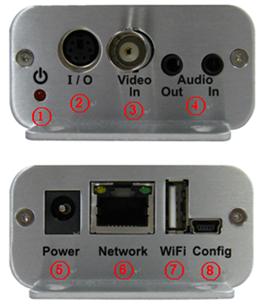

Mini-Din I/O Socket
BNC Video Input
Audio Line In/ Out
12V DC Power Input
RJ-45 Ethernet Port
USB Host for Wi-Fi Support
Mini-USB Config Port
| System | CPU | ARM 9 Based 32 Bit RISC |
| SDRAM | 64 MB | |
| Flash | 16 MB | |
| Embedded OS | Linux 2.6 | |
|
Compression�V Video/Audio |
Format | M-JPEG, MPEG-4, H.264 Dual Stream Simultaneously |
| Frame Rate | Up to 30fps (NTSC) / 25fps (PAL) @ D1 Resolution | |
| Bit Rate | MJPEG: 5 Video Quality Level Selectable; MPEG-4/H.264 : 64K~4Mbps | |
| Video Resolution |
NTSC: D1 (720x480), CIF(352x240), QCIF(176x120) PAL: D1 (720x576), CIF(352x288), QCIF(176x144) |
|
| Video Input | 1CH, NTSC/PAL, BNC Connector, 1.0Vp-p with 75 �[ Loading | |
| Audio Input | 8 kHz Stereo, ADPCM | |
| Audio Output | 8 kHz Stereo, ADPCM | |
| Connector | 3.5mm Input/Output | |
| Wireless | Wi-Fi | IEEE 802.11 b/g *External USB Adapter Support |
| IP Network | Ethernet | RJ45 - 10/100 Base-T |
| Protocol | TCP/IP, DHCP, PPPoE, HTTP, DDNS, NTP, FTP, SMTP, UDP, RTP, RTSP, 3GPP, UPnP | |
| Mechanical Info | Power Supply | DC 12V / 350mA |
| Dimension | 32(H)X98(W)X62.2(D)mm | |
| Pan/Tilt/Zoom | Protocols | PelcoP, PelcoD, DynaColor, Merit_Lilin, Visca, Transparent |
| Baud Rate | 1200, 1800, 2400, 4800, 9600, 19200 | |
| Connector | RS-485 for PTZ Control | |
|
Minimum System Requirements |
CPU | Pentium 4, 2.4GHz and Above |
| Hard Disk | 40 GB or Above | |
| Memory | 512 MB or Above | |
| Operating System | Windows XP with SP2 or Above / Windows 2000 with SP4 or Above / Vista 32 | |
| Video Resolution | SVGA or XGA with 1024x768 Resolution | |
| Software | DirectX 9.0C or Above | |
|
Management & Support |
Configuration | IP Surveillance Utility |
| USB Port | Mini-USB Config Port / Mini-USB Female Socket for Network Setting | |
| Web Browser | Microsoft Internet Explorer 6.0, or Above | |
| Security | Password Protection | |
|
Operating Environment |
Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 20% ~ 80% RH | |
| Standard Accessories | Power Adapter, USB Cable, Mini-Din Cable | |
| CD-ROM (User Manual, Free Bundle NVR) | ||
Power LED
Features
- H.264, MPEG-4, M-JPEG Dual Stream s Simultaneously
- D1, CIF QCIF Image Resolution
- Up to 30fps (NTSC) / 25 fps (PAL) at D1 Resolution
- 1CH, NTSC/PAL Video Input, BNC Connector
- 2-way Audio
- Digital Inx1, Digital Outx1
- External Wi-Fi Dongle Support
- Up to 3 Self-Configurable Motion Detection Areas
- Up to 20 sec Video Buffer
- RS-485 Serial Connector
- Support TCP/IP, DHCP, PPPoE, HTTP, DDNS, NTP, FTP, SMTP Network Protocols
- Alarm Trigger: Periodic Timer, Motion Detection, Video Loss, Power Loss, Network Loss, Digital Input
