500~6000MHZ Hi Power Amplifier

Model : AAM-1719-100W




No.

Item

AAM-1719-100W





1





Frequency Range

1710-1880 MHz

Customize

Customized

2

Gain

>45dB

3

Input Range

3-8dBm

4

Max RF Output

50dBm

5

Gain Adjust Range

31dB,1dB Step

6

IMD3 (Optional)

NC., -36dBC, -40dBC, -45dBC

7

In-Band Ripple

2dB

8

IN/OUT VSWR

1.5

9

Working Voltage

28VDC

10

Working Current

<11A

11

RF Input/ Output

SMA -Female

12

Power Supply

Pull-core Capacitance

13

Working Temperature

-25----+65

14

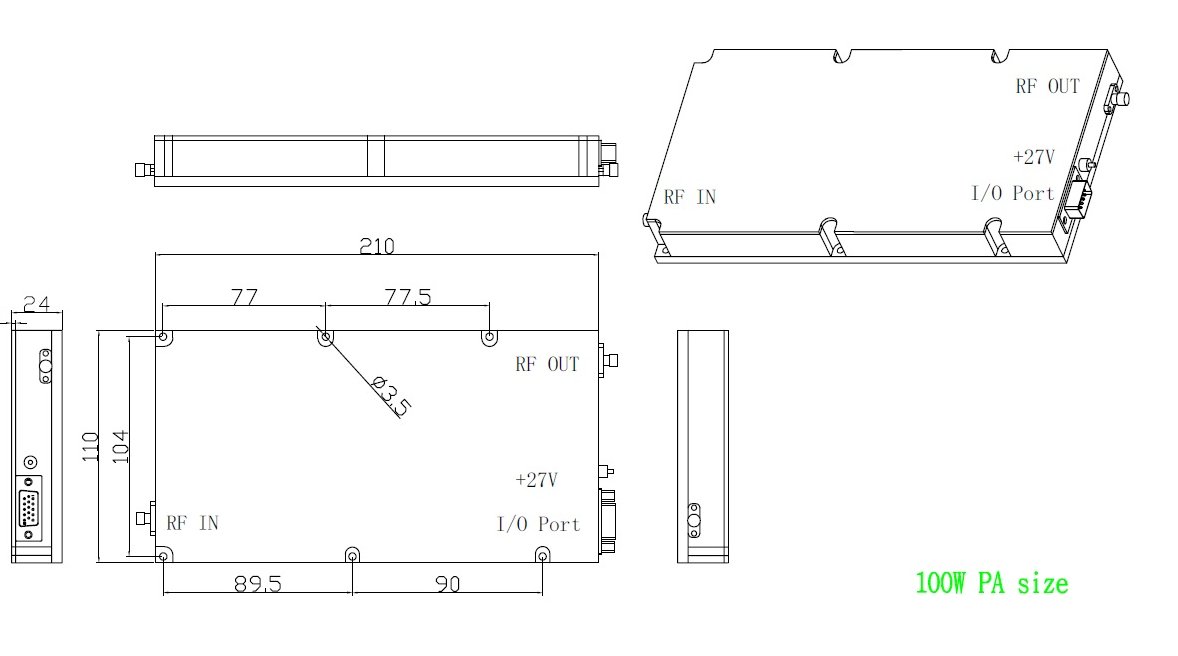

Dimension

210*110*25mm

15

Weight

<2Kg



16

Protection (Optional)

Shutdown more than 75,Auto-restart less than 50

High VSWR: shutdown over High-VSWR, Auto-restart after 30s

































17















I/O Port Monitoring function

(DB15,Female) (Optional)



PIN1: 1dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)



PIN2: 2dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)

PIN3: 4dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)

PIN4: 8dB(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)

PIN5:16dB (Hang in air or add 5VDC: No attenuation; Grounding: attenuation)

PIN7: VSWR (Reflected RF Power Indicator; Max voltage:4V)

PIN10:P/L (Output RF Power Indicator; Max voltage:4V)

PIN11: LE /EN (5V: PA OFF; Hang in air or grounding: PA ON)

PIN14: T/L(Temperature Indicator :0.01V/1Celsius)



PIN6, PIN8,PIN9,PIN12,PIN13: NC









I/O Port (DB9,Female,RS485)

(Optional)



PIN1,PIN2: RS485A;   PIN3,PIN4: RS485B; PIN5:GND



RS485   (With free PC software)

Setting: ON/OFF, ATT,     Gain, Alarm Temperature, Alarm VSWR



Monitoring:   RF Power, VSWR, Temperature, ATT, Gain, Alarms
