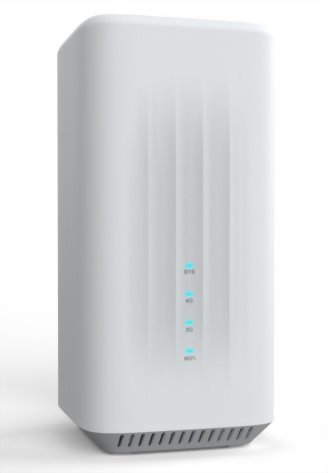

5G Indoor CPE
|
Cellular Specification |
|
|
FrequencyBand |
5G NR NSA：n78 5G NR SA：n1/5/8/28/ 41/77/78 LTE-FDD：B1/3/5/ 8 LTE-TDD：B34/38/39/ 40/ 41 |
|
DataTransferRate (PeakRate)* |
5G SA Sub-6：DL 2.2 Gbps；UL 1 Gbps 5G NSA Sub-6：DL2.2Gbps；DL 575Mbps LTE：DL 600Mbps；DL 150Mbps |
|
Antennas |
Built-in Omni-directional antennas |
|
WiFi Specification- AX3000M |
|
|
WiFidatarate |
2.4GHz 574Mbps+5GHz 2402Mbps |
|
WiFiProtocol |
IEEE802.11 a/b/g/n/ac/ax |
|
FrequencyBand |
2.4GHz 574Mbps@2*2 Wi-Fi6 5GHz 2402Mbps@2*2 Wi-Fi6 |
|
Flash/DDR |
128MB/256MB |
|
Wi-Fi Antennas |
Built-in omni-directional antennas |
|
Interfaces |
|
|
WAN |
1 xGigaEthernet(RJ45),autoMDI/MDIX |
|
LAN |
3 xGigaEthernet(RJ45),autoMDI/MDIX |
|
SIMCard |
1*Nano-SIM interface |
|
Power |
1*DC Port,12V/1.5A |
|
LEDIndicators |
SYS, 5G,4G,WiFi |
|
Button |
RESET,MESH/WPS,POWER |
|
Software Features |
|
|
Management |
Access control, Web GUI, TR069, Device Factory Default Setting |
|
Network |
Network selection (5G/ Wired WAN / Auto); Network mode: Router, Bridge ; IPv4/v6 (Dual-stack); DHCP or Static IP address Assignment, DHCP Setting; DHCP Server for LAN Devices Static and Dynamic Routing; MESH; NTP Service Support |
|
WiFiFeatures |
Support Wi-Fi Switch turn on/off, Support Wi-Fi SSID/ KEY setup; Support Encryption: WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3; Support SSID broadcasting; Support Wi-Fi bandwidth setup; Support Wi-Fi channel self-adapt and select |
Built-in high gain omnidirectional antennas
Support 5G SA and NSA
Support Wi-Fi6, 5G and 2.4G dual-band wireless rates can up to 3000Mbps
Support MESH, IPv4/v6 (Dual-stack), etc.
Support Network selection, 5G/ Wired WAN / Auto
