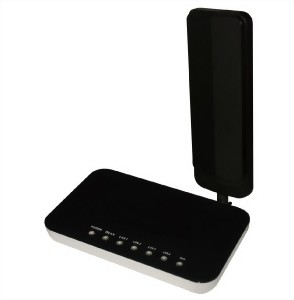

802.11b/g 1W Access Point

Model : AAP-I2410

Specifications

Standard IEEE 802.11b/g
Frequency Band 2.400GHz ~ 2.484GHz
Radio type IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK)
IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK)
Data Rate 802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
Access Protocol CSMA/CA
Wireless Mode AP
Client
WDS
AP+WDS
Operation Mode Gateway
Bridge
Wireless ISP
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
RF Output Power(Typical) 802.11b: up to 30 ± 1 dBm
802.11g: up to 24 ± 1 dBm
Sensitivity -96dBm @ 802.11b
-89dBm @ 802.11g
Antenna One 12dBi Omni-antenna(SMA connector)
Dimension (mm) 170(L) x 120(W) x 27(H)
Weight 245g
Operation Temperature 0°C ~ 60°C ambient temperature
Storage Temperature -20°C ~ 70°C ambient temperature
Humidity 10% ~ 90% (Non-condensing)
Connector One RJ-45 WAN
Four RJ-45 LAN ports
Reset to default button
Power jack
Power requirement 12V DC

Features

  • 802.11b/g compliant with 54Mbps high-speed data rate
  • Operation modes: Gateway, Bridge, Wireless ISP
  • Wireless modes: AP, Client, WDS, AP+WDS
  • DHCP Server/Client
  • Four Ethernet ports for broadband sharing
  • Virtual DMZ, Port Forwarding
  • Dynamic DNS
  • TCP/UDP/ICMP/ARP protocol stack
  • Firewall, URL/IP/Port/MAC filtering
  • Wireless users access control
  • Wireless security- 64/128bit WEP, WPA/WPA2, 802.1x and 802.11i
