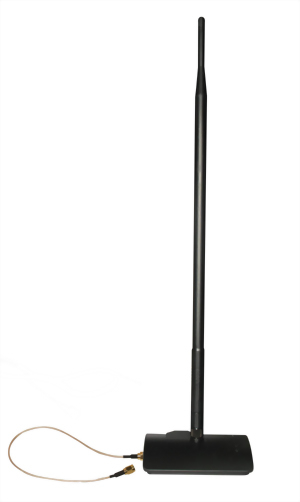

• 802.11b/g/n 1W indoor booster +9dBi omni antenna

802.11b/g/n 1W indoor booster +9dBi omni antenna

Model : AAM-2410MO9

Applications WLAN 802.11 b/g/n for 11Mbps, 22Mbps, 54 Mbps,150Mbps
Router BAccess point BUSB Adapter BPCI Card
Freqency Bandwidth 2.4GHz~2.5GHz
RF Input/Output Power (Typical) Input Power 1~19 dBm
Output Power 30 dBm (MAX)
Receive Input Power/Gain  Input Power -16 dBm(Max.)
Gain:12dB typical
RF Connector Type      Reverse SMA
Antenna Type   9dBi Omni-antenna
Dimension(mm)  100(L)x90(W)x420(H)mm
Storage Humidity     10% ~ 90% (Non-condensing)
Operation Temperature  0°C ~ 55°C
Storage Temperature -20°C ~ 70°C ambient temperature
Operation Voltage DC 5V 1A

  • Work with IEEE 802.11b/g/n wireless LAN devices
  • Stronger output power improves the link quality and coverage
  • Analog Gain control and Power control
  • Linear Output Power 21dBm/IEEE 802.11n
  • Linear Output Power 24dBm/IEEE 802.11g
  • Linear Output Power 29dBm/IEEE 802.11b
  • MSL 1 (Moisture Sensitivity levels)
  • Tx LED(Blue) and Power LED(Blue)
