802.11n Long-Range Outdoor AP/CPE Built-in 12dBi Dual-Polarity Antenna

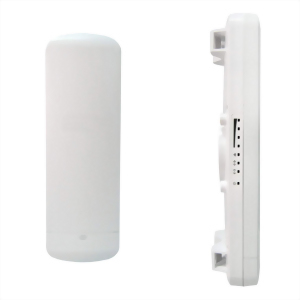

APE-2405A-P12 is a cost effective 802.11n outdoor AP/CPE operating in a 2.4GHz band that is also compliant with IEEE 802.11b/g standard. It has a build-in 12dBi dual-polarity antenna with dual ethernet ports. The APE-2405A-P12 support passive PoE allowing easy installationwithout any environment limitation.

Specifications:
CPU |
Atheros AR7240 |
||||||||||||
Flash |
8MB |
||||||||||||
RAM |
32MB |
||||||||||||
Interface |
2 x RJ45 & 1x Reset |
||||||||||||
Antenna |
Integrated 12dBi antenna |
||||||||||||
Output Power |
802.11b |
1Mbps |
29 +/-1.5 |
802.11g |
6Mbps |
29 +/-1.5 |
|||||||
2.2Mbps |
29 +/-1.5 |
24Mbps |
29 +/-1.5 |
||||||||||
5.5Mbps |
29 +/-1.5 |
36Mbps |
28 +/-1.5 |
||||||||||
11Mbps |
29 +/-1.5 |
54Mbps |
28 +/-1.5 |
||||||||||
802.11n |
MCS0 |
29 +/-1.5 |
|||||||||||
MCS3 |
29 +/-1.5 |
||||||||||||
MCS6 |
26 +/-1.5 |
||||||||||||
MCS9 |
29 +/-1.5 |
||||||||||||
MCS12 |
28 +/-1.5 |
||||||||||||
MCS15 |
25 +/-1.5 |
||||||||||||
Sensitivity |
802.11b |
1Mbps |
-95 |
802.11g |
6Mbps |
-90 |
|||||||
2.2Mbps |
-94 |
24Mbps |
-82 |
||||||||||
5.5Mbps |
-92 |
36Mbps |
-80 |
||||||||||
11Mbps |
-90 |
54Mbps |
-75 |
||||||||||
802.11n |
MCS0 |
-91 |
|||||||||||
MCS3 |
-83 |
||||||||||||
MCS6 |
-74 |
||||||||||||
MCS9 |
-89 |
||||||||||||
MCS12 |
-80 |
||||||||||||
MCS15 |
-72 |
||||||||||||
Operation Mode |
AP |
Client |
WISP |
WDS Bridge |
|||||||||
Software |
Site Survey |
||||||||||||
Mounting |
Pole Mount (Standard) |
Adjust Angle Mount (Option) |
|||||||||||
Size |
TBD |
Weight |
TBD |
||||||||||
Power Supply |
PoE 18V/1 A |

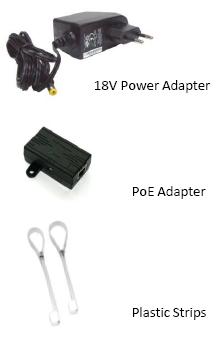

Standard Package:
Option Accessory:
