• 3G 802.11b/g/n Outdoor Router build in 9dBi 2.4Ghz antenna + PIVA antenna

3G 802.11b/g/n Outdoor Router build in 9dBi 2.4Ghz antenna + PIVA antenna

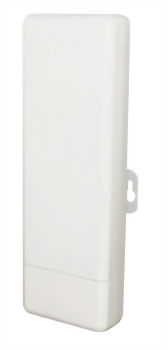

Model : AAP-2410M-3G

Specifications

Standard IEEE 802.11b/g/n
Interface 1 WAN + Build-in 3G module
1 LAN 10/100Mbps port
Operation Mode Gateway
Bridge
Wireless ISP
Frequency Band 2.400GHz ~ 2.484GHz
Data Rate 802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate fall back
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
802.11n(20MHz): up to 72Mbps
802.11n(40MHz): up to 150Mbps
Access Protocol CSMA/CA
Support 3G Standard UMTS/ HSPDA / HSPA/ CDMA
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
RF Output Power(Typical) 802.11b: up to 29 ± 1 dBm
802.11g: up to 25 ± 1 dBm
802.11n: up to 24 ± 1 dBm
Sensitivity -93dBm @ 802.11b
-88dBm @ 802.11g
-87dBm @ 802.11n
Antenna One 9dBi directional antenna
One PIFA antenna
Dimension (mm) 225(L) x 77(W) x 59(H)
Wireless Mode AP
Client
WDS
AP+WDS
Operation Temperature -20°C ~ 70°Cambient temperature
Storage Humidity 10% ~ 90% (Non-condensing)
Connector One RJ-45 WAN port
One RJ-45 LAN port
Reset to default button
Power requirement 12V DC

Features

  • Support advanced 1 x 1 Technology with up to 150Mbps downstream and upstream
  • Complies with 2.4GHz IEEE802.11n and IEEE802.11b/g standards
  • Low Noise Amplifier(LNA) support
  • Support 20MHz and 40 MHz bandwidth
  • Operation mode: Gateway, Bridge, Wireless ISP
  • Wireless mode: AP, Client, WDS, AP+WDS
  • DHCP Server/Client
  • RF output power adjustable
  • Virtual DMZ, Port Forwarding
  • Dynamic DNS
  • TCP/UDP/ICMP/ARP protocol stack
  • Firewall, URL/IP/Port/MAC filtering
  • Wireless users access control
  • Multiple SSID
  • NTP client
  • Wireless security-64/128bit WEP, WPA TKIP, WPA2 AES, 802.1x
  • Support PPPoE, VPN pass-through(PPTP and L2TP)
  • QoS enhancement-WMM
  • WPS
  • Support 3G connection
