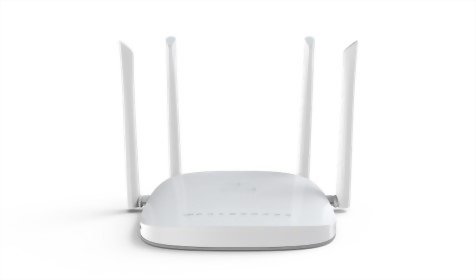

AC1200 Dual Band Gigabit Router
|
Chip Set |
RTL8198D-VG2+RTL8192FR+RTL8812FR |
|
FLASH |
128MB |
|
DDR3 |
256MB |
|
Wireless Rate |
2.4GHz：300Mbps@2*2 Wi-Fi 5 |
|
5GHz: 867Mbps@2*2 Wi-Fi 5 |
|
|
Antennae |
4* 5dBi external antennas |
|
Interface |
1*GE WAN/LAN+3*GE LAN |
|
Indicator |
POWER WAN 2.4G 5G WPS |
|
MIMO |
Support MU-MIMO |
|
Wi-Fi Protocol |
IEEE 802.11b/g/n/ac |
|
Working Mode |
Router Mode, AP Mode |
|
Management |
WEB |
|
State |
System state, Interface state, Routing table |
|
Wireless Configuration |
Wi-Fi Basic Parameter Configuration / Blacklist |
|
Network settings |
Working mode, LAN/WAN address |
|
System |
System Attributes/Password Modification/Backup Upgrade/System Log/Restart |
|
Setup Wizard |
Quick Setup Wizard |
|
MTBF |
>20000H |
|
Power Consumption |
≤12W |
|
Working Temperature |
0℃～40℃ |
|
Storage Temperature |
-40℃～70℃ |
|
Working Humidity |
10%～95%, No condensation |
|
Storage Humidity |
5%～95%, No condensation |
|
Power Adapter |
DC 12V/1A |
．High Processer Working Frequency：Dual core 1.25GHz CPU, and high specification to achieve high power coverage.
．QoS Intelligent Bandwidth Management：According to the needs of different users to access the Internet, reasonable allocation of upload, download bandwidth resources.
．Multi-Level Security：Support IP filtering, MAC filtering, SSID hiding, advanced encryption and other multi-level security precautions.
．2T2R Technology：Support signal dual channel transmission and dual channel reception.
