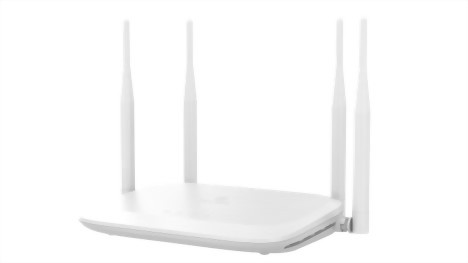

AC1200 Full Gigabit Router

Model : AAP-Q9PRO

Q'ty :

Chip Set	MT7621DAT+MT7603E+MT7613BEN
FLASH	16MB or 128MB
DDR3	128MB
Wireless rate	2.4 GHz：300Mbps&22 5GHz;：867Mbps&22
Antenna	4*5 dBi External antenna
Interface	1* GE WAN+3* GE LAN
Button	1* RESET+1* WPS
Indicator	POWER WAN WiFi
Wi-Fi Agreement	IEEE 802.11b/g/n/ac
MIMO	MU-MIMO
Work model	Routing mode, AP mode, relay mode
Management approach	Chinese WEB Remote Management
State	System state, interface state, routing table
Wireless Configuration	Wi-Fi Basic Parameter Configuration / Blacklist
Network settings	Working mode LAN/WAN address setting
System	System properties/password modification/backup upgrade/restart
Setup Wizard	Quick Configuration Wizard
MTBF	>20000 H
power consumption	≤12 W
Working temperature	0℃～40℃
Storage temperature	-40℃～70℃
Working humidity	10%~95%, no condensation
Storage humidity	5%~95%, no condensation
Power adapter	DC 12V/1A

．High Master Frequency: Processor operating main frequency up to 880MHZ, 2800DMIPs, High specification support big coverage

．QOS Intelligent Bandwidth: It can reasonably allocate and download bandwidth resources according to the needs of different users

．Multi-level security: support IP filtering, MAC filtering, SSID hiding, advanced encryption and other multi-level security precautions

．2T2R technology: signal dual channel transmission, dual channel reception, transmission rate leading the rest of the products
