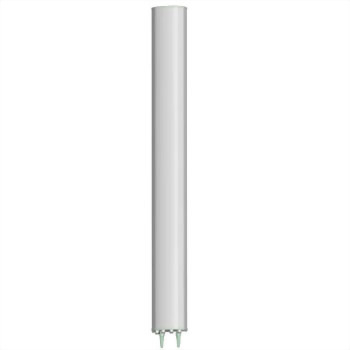

Base Station Antenna
Manual or by optional RCU(Remote Control Unit)
|
Mechanical specifications |
|
| Connector | 4 × 7/16DIN-Female |
| Connector position | Bottom |
| Height×width×depth (mm) | 2580 × 268 × 138 |
| Packing size (mm) | 2935 × 365 × 220 |
| Antenna weight (kg)(with installation kit) | 26 |
| Packing weight (kg) | 32 |
| Wind loading area (m²) | 0.7 |
| Rated wind velocity (m/s) | 60 |
| Reflector material | Aluminum Alloy |
| Radome material | Uv PVC |
| Radome color | PANTONE-5517C |
| Mechanicaltilt (°) | 0 ~ 10 |
| Operating temperature (°C) | -40 ~ 60 |
| Mounting hardware (mm) | φ50 ~ φ115 |
|
Electrical specifications |
|||
|
Frequency range (MHz) |
870 ~ 960 |
1710 ~ 1880 |
|
|
Polarization |
±45° |
||
|
Gain (dBi) |
17 |
17.5 |
|
|
Electrical downtilt (°) |
0~8 |
0~8 |
|
|
Half-power beam width (°) |
Hor:63 |
Hor:66 |
|
|
Vert:7.5 |
Vert:5.5 |
||
|
Sidelobe suppression (dB) |
0º...4º...8º |
0º...4º...8º |
|
|
16...15...14 |
16...15...14 |
||
|
Front-to-back ratio (dB) |
≥25 |
||
|
Isolation (dB) |
≥30 |
||
|
Cross-polar ratio (dB) |
≥15(±60°≥10) |
||
|
Impedance (Ω) |
50 |
||
|
VSWR |
≤1.5 |
||
|
Intermodulation IM3 (2×43dBm carrier) |
≤-150 dBc |
||
|
Maximum input power (W) |
400/200 |
||
|
Lightning protection |
DC Ground |
||
