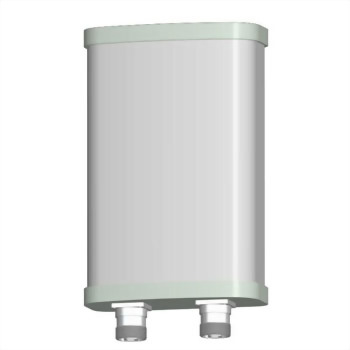

Base Station Antenna

Panel Antenna
Model : APG-172212

Spectifications

Mechanical specifications

Connector

2 × 7/16DIN-Female

Connector position

Bottom

Heigh × width × depth (mm)

280 × 165 × 65

Packing size (mm)

705 × 220 × 165

Antenna weight (kg)(with installation kit)

5

Packing weight (kg)

6.5

Wind loading area (m²)

0.05

Rated wind velocity (m/s)

60

Reflector material

Aluminum Alloy

Radome material

Fiberglass

Radome color

Pantone cool gray 3u

Mechanical tilt (°)

0~10

Operating temperature (°C)

-50~65

Mounting hardware (mm)

φ50 ~ φ115



Electrical specifications

Frequency range (MHz)

1710~1880

1850~1990

1920~2170

Polarization

±45°

Gain (dBi)

11.5

11.5

12

Electrical downtilt (°)

0

0

0

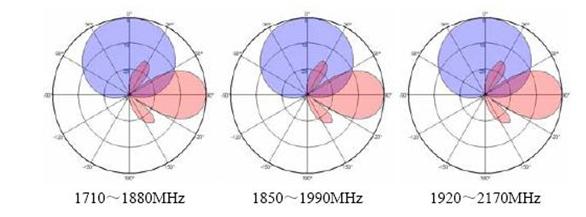

Half-power beam width (°)

Hor:68

Hor:65

Hor:63

Vert:32

Vert:30

Vert:28

Front-to-back ratio (dB)

30

Isolation (dB);

≥30

Cross-polar ratio (dB);

≥15(±60°≥10)

Impedance (Ω)

50

VSWR

≤1.4

Intermodulation IM3 (dBm)

≤-107

(2×43dBm carrier)

Maximum input power (W)

300

Lightning protection

DC Ground
