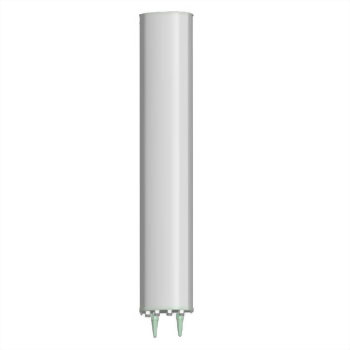

Base Station Antenna

16/18dBi Adjustable Electrical Downtilt Antenna
Manual or by optional RCU(Remote Control Unit)
Model : APG-08211618

Spectifications

Mechanical specifications

Connector 4 × 7/16DIN-Female
Connector position  Bottom
Height×width×depth (mm) 1980 × 268 × 138
Packing size (mm) 2355×365×220
Antenna weight (kg) (with installation kit)  24
Packing weight (kg)  30
Wind loading area (m²)  0.53
Rated wind velocity (m/s)  60
Reflector material  Aluminum Alloy
Radome material Uv PVC
Radome color PANTONE-5517C
Mechanical tilt 0 ~ 10
Operating temperature -40 ~ 60
Mounting hardware (mm) φ50 ~ φ115



Electrical specifications

Frequency range (MHz)

806 ~ 896

880 ~ 960

1710 ~ 1880

1850 ~ 1990

1920 ~ 2170

Polarization

±45°

Gain (dBi)

15.5

16

17.5

17.8

18

Electrical downtilt

0 ~ 8

0 ~ 8

0 ~ 8

0 ~ 8

0 ~ 8

Half-power beam width

�@

Hor:65

Hor:63

Hor:66

Hor:64

Hor:63

Vert:10

Vert:9.5

Vert:5.5

Vert:5

Vert:5

Sidelobe suppression (dB)

0º...4º...8º

0º...4º...8º

(First sidelobe above main beam)

16...15...14

16...15...14

Front-to-back ratio (dB)

≥25

Isolation (dB)

≥30

Cross-polar ratio (dB)

≥15(±60°≥10)

Impedance (Ω)

50

VSWR

≤1.5

Intermodulation IM3 (2x43dBm carrier)

≤-150 dBc

Maximum input power (W)

400/200

Lightning protection

DC Ground
